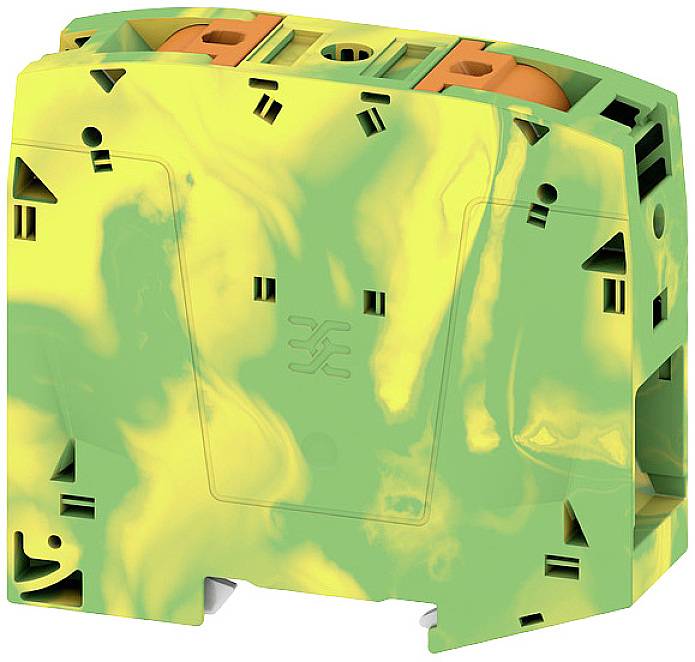

Weidmüller 2694090000 PG terminal 25 mm Push-in connector, Jack connector Configuration: Terre Green-yellow 5 pc(s) Piec
Packaging type
Piece
Product type
PG terminal
Connection
Push-in connector
Jack connector
Cross section (flexible) (max.)
120 mm²
Cross section (inflexible) (max.)
120 mm²
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
PG terminal
- Features
+ push-in spring bracket
- Connection
Push-in connector
Jack connector
- Configuration
Terre
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
120 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
120 mm²
- Clamp width
25 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Green-yellow
- Nominal voltage
1000 V
- Manufacturer part #
2694090000
- Content
5 pc(s)
- Type
A2C 95/120 PE
- Dim
(L x W x H) 90 x 25 x 101.5 mm
- Width
25 mm
- Height
101.5 mm
- Length
90 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2537533 Weidmüller 2694090000 PG terminal 25 mm Push-in connector, Jack connector Configuration: Terre Green-yellow 5 pc(s) Piec
