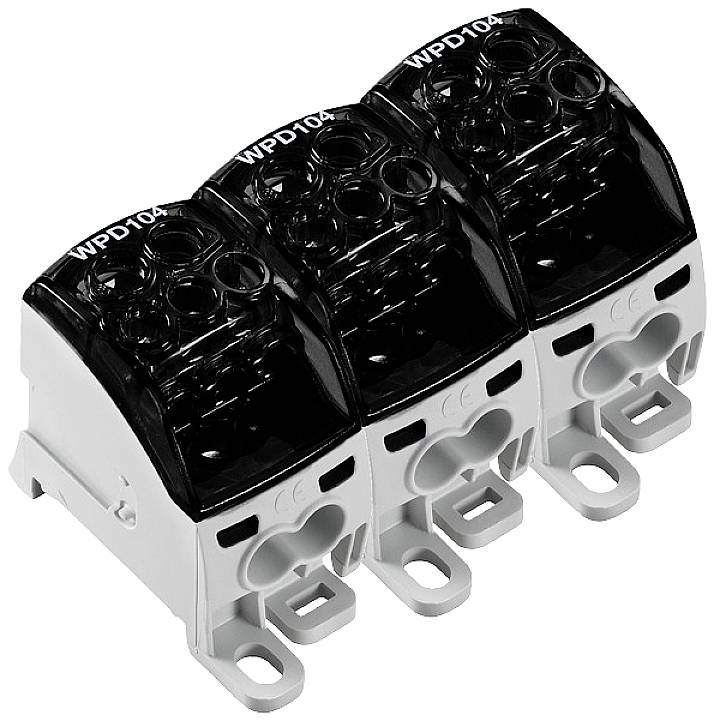

Weidmüller 2725400000 Distribution block 94.5 mm Screws Black 1 pc(s) Piece
Packaging type
Piece
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
EAN:
Part number:
Item no:
Highlights & Details
- WPD 304 3X25/6X16+9X10 3XBK
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
built-in jumper
- Connection
Screws
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
25 mm²
- Clamp width
94.5 mm
- No. of rows
1
- Pins per row
6
- Factory colour
Black
- Nominal current
164 A
- Nominal current - rounded value
164 A
- Manufacturer part #
2725400000
- Content
1 pc(s)
- Type
WPD 304 3X25/6X16+9X10 3XBK
- Dim
(L x W x H) 68 x 94.5 x 68 mm
- Width
94.5 mm
- Height
68 mm
- Length
68 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2540030 Weidmüller 2725400000 Distribution block 94.5 mm Screws Black 1 pc(s) Piece
