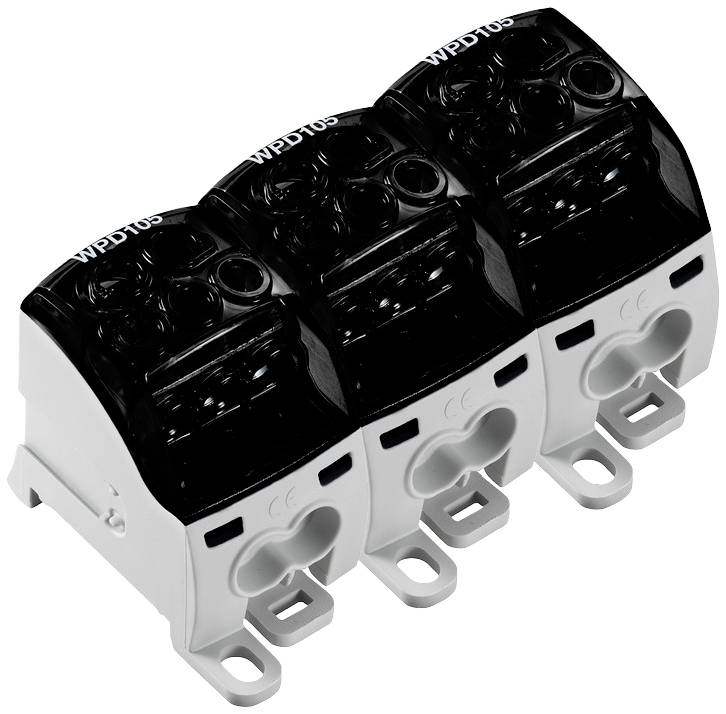

Image similar
Weidmüller 2725430000 Distribution block 106.8 mm Screws Black 1 pc(s) Single
Packaging type
Single
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
35 mm²
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Single
- Product type
Distribution block
- Features
built-in jumper
- Connection
Screws
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
35 mm²
- Cross section (inflexible) (max.)
35 mm²
- Clamp width
106.8 mm
- No. of rows
1
- Pins per row
6
- Factory colour
Black
- Nominal current
214 A
- Nominal current - rounded value
214 A
- Manufacturer part #
2725430000
- Content
1 pc(s)
- Type
WPD 305 3X35/6X25+9X16 3XBK
- Dim
(L x W x H) 70 x 106.8 x 70 mm
- Width
106.8 mm
- Height
70 mm
- Length
70 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
yes
