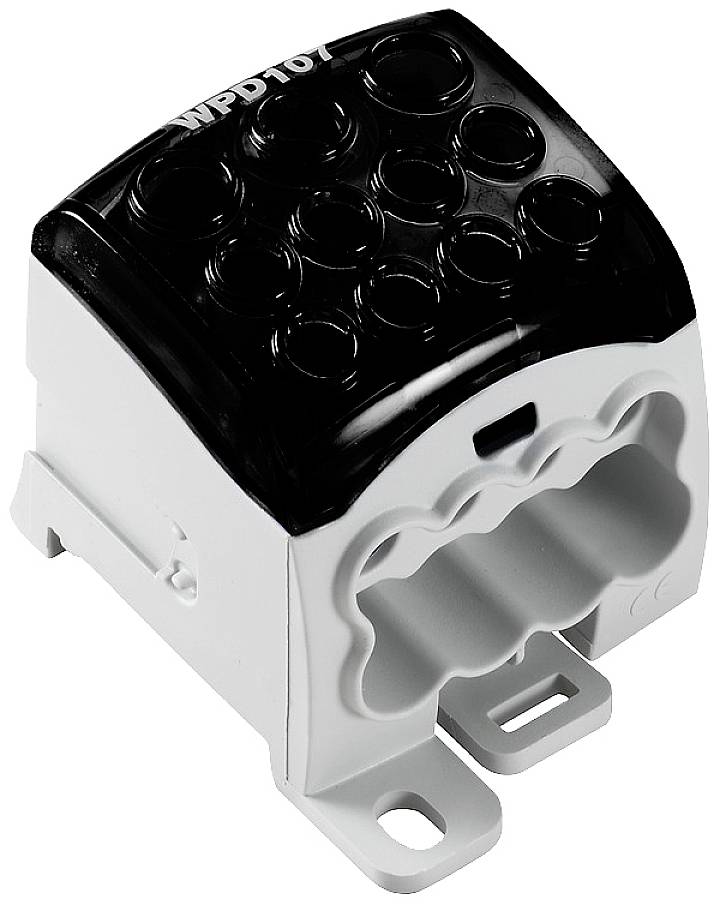

Weidmüller 2725450000 Distribution block 51 mm Screws Black 1 pc(s) Piece
Packaging type
Piece
Product type
Distribution block
Connection
Screws
Cross section (flexible) (max.)
70 mm²
Cross section (inflexible) (max.)
95 mm²
EAN:
Part number:
Item no:
Highlights & Details
- WPD 107 1X95/2X35+8X25 BK
Technical specifications
- Packaging type
Piece
- Product type
Distribution block
- Features
built-in jumper
- Connection
Screws
- Cross section (flexible) (max.)
70 mm²
- Cross section (inflexible) (max.)
95 mm²
- Clamp width
51 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Black
- Nominal current
270 A
- Nominal current - rounded value
270 A
- Manufacturer part #
2725450000
- Content
1 pc(s)
- Type
WPD 107 1X95/2X35+8X25 BK
- Dim
(L x W x H) 73 x 51 x 73 mm
- Width
51 mm
- Height
73 mm
- Length
73 mm
- RoHS-compliant
Yes
- Flammability rating
V0
- Connector colour
Black
- Insulation material
Thermoplastic
- UKCA
yes
