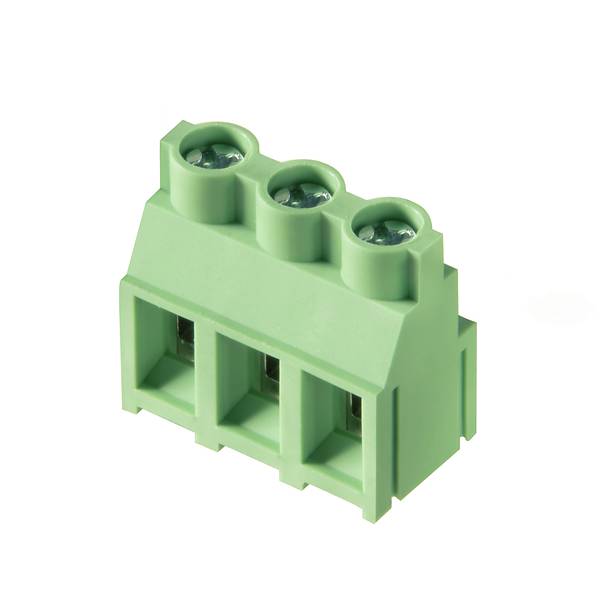

Weidmüller 2727230000 PCB terminal 4 mm² Number of pins 3 Green 1 pc(s) Box
Packaging type
Box
Product type
PCB terminal
CS
7.62 mm
Number of pins
3
Connection
Soldering
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Box
- Type
TPS 7.62/03/90 5.0SN GN BX
- Product type
PCB terminal
- CS
7.62 mm
- Number of pins
3
- Connection
Soldering
- Nominal current
32 A
- Cross section (flexible) (min.)
0.25 mm²
- Nominal current - rounded value
32 A
- Cross section (inflexible) (min.)
0.05 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (max.)
6 mm²
- Connector orientation
Parallel (to the PCB)
- Enclosure material
Polyamide
- Factory colour
Green
- Manufacturer part #
2727230000
- Content
1 pc(s)
- Nominal voltage
630 V
- Type
TPS 7.62/03/90 5.0SN GN BX
21.5 mm
Green
630 V
Solder
6 kV
6021
3
Screw connection
Soldering connection
5 mm
7.62 mm
Other
0.05-6 mm²
0.25-4 mm²
Polyamide (PA)
0°/180° (horizontal)
Other
3
V0
Documents & Downloads
Datasheet
Datasheet 3767868 Weidmüller 2727230000 PCB terminal 4 mm² Number of pins 3 Green 1 pc(s) Box
User & Safety Instructions
User & Safety Instructions 3767868 Weidmüller 2727230000 PCB terminal 4 mm² Number of pins 3 Green 1 pc(s) Box
Description
PCB terminal (PCB terminal, circuit board terminal) for secure, simple data transfer directly to the PCB.
