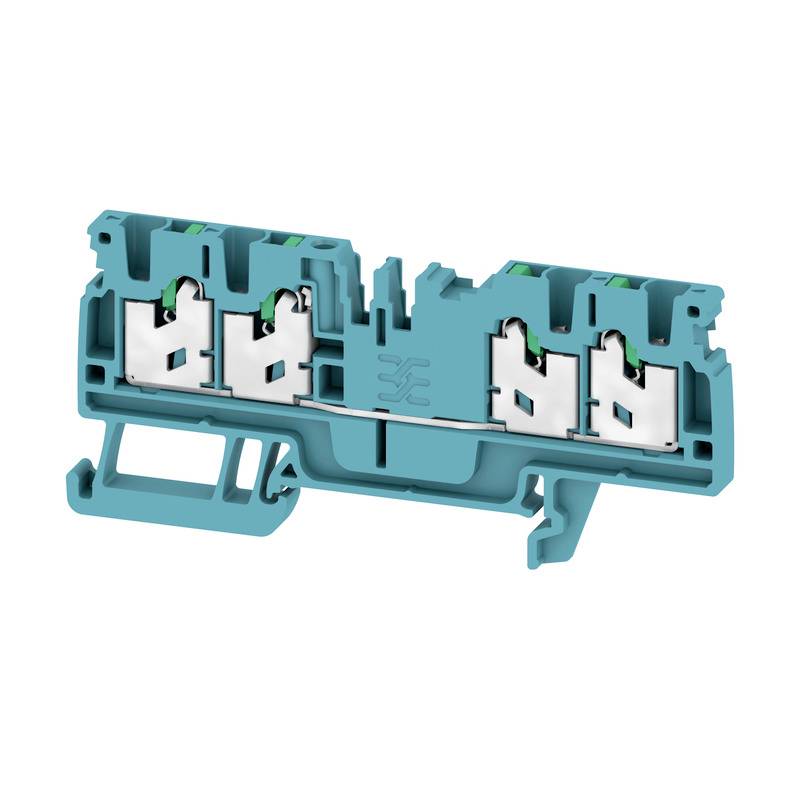

Weidmüller 2753960000 Continuity Snap-in Blue 100 pc(s)
Product type
Continuity
Connection
Snap-in
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Content
100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Continuity series terminal, SNAP IN, 2.5 mm², 800 V, 24 A, Number of connections: 4
- S4C 2.5 BL
Technical specifications
- Product type
Continuity
- Connection
Snap-in
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Factory colour
Blue
- Manufacturer part #
2753960000
- Content
100 pc(s)
- Type
S4C 2.5 BL
- RoHS-compliant
Yes
- Connector colour
Blue
DIN rail (top hat rail) 35 mm
Blue
800 V
84 m
-60-130 °C
V0
5.1 mm
38 mm
TRUE
1
4
FALSE
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
Thermoplastic
24 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2851842 Weidmüller 2753960000 Continuity Snap-in Blue 100 pc(s)
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
