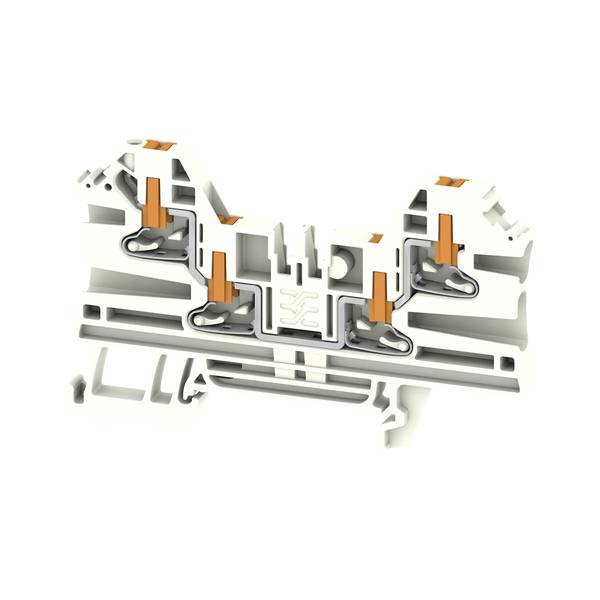

Weidmüller 2847540000 Serial continuity Plug & Clip White 50 pc(s) Piece
Packaging type
Piece
Product type
Serial continuity
Connection
Plug & Clip
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Continuity serial terminal, PUSH IN, white, 2.5 mm², 24 A, 800 V, number of connections 4
- AL4C 2.5 WT
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Plug & Clip
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
1
- Pins per row
4
- Factory colour
White
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
2847540000
- Content
50 pc(s)
- Type
AL4C 2.5 WT
- Dim
(L x W) 48 mm x 5.1 mm
- Width
5.1 mm
- Length
48 mm
- Flammability rating
V0
- Connector colour
White
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750389 Weidmüller 2847540000 Serial continuity Plug & Clip White 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3750389 Weidmüller 2847540000 Serial continuity Plug & Clip White 50 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
This text is machine translated.
This text is machine translated.
