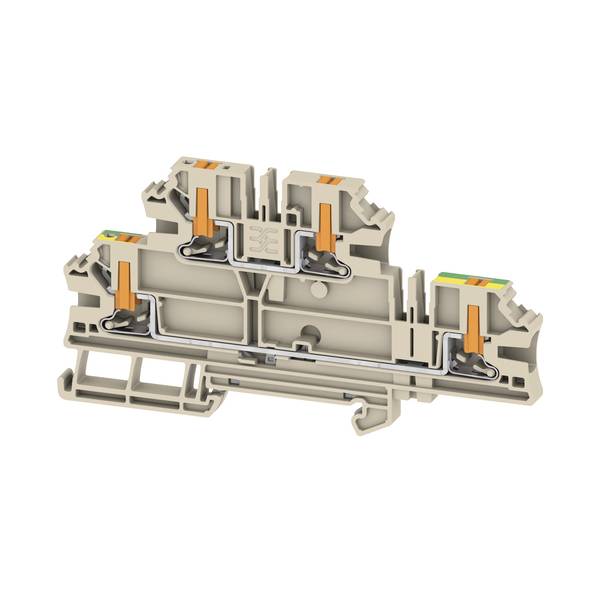

Weidmüller 2847800000 Multiport terminal Jack connector Beige 50 pc(s) Piece
Packaging type
Piece
Product type
Multiport terminal
Connection
Jack connector
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Multiport terminal
- Features
low type
- Connection
Jack connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Beige
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
2847800000
- Content
50 pc(s)
- Type
AL2T 4 FT-PE
- Dim
(L x W) 59.5 mm x 6.1 mm
- Width
6.1 mm
- Length
59.5 mm
- Flammability rating
V0
- Connector colour
Beige
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750481 Weidmüller 2847800000 Multiport terminal Jack connector Beige 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3750481 Weidmüller 2847800000 Multiport terminal Jack connector Beige 50 pc(s) Piece
Description
Series terminal with several levels for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. Space-saving design.
This text is machine translated.
This text is machine translated.
