Name: Weidmüller 2856220000 Multiport terminal Jack connector Beige 50 pc(s) Piece
Brand: Weidmüller
SKU: 3750376

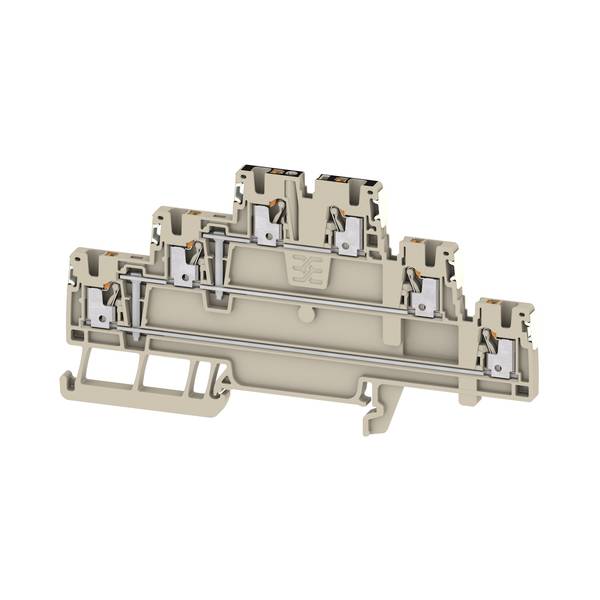

Cross-section of a beige electrical terminal block with multiple wire clamp connections and mounting rails, shown on a white background.

Packaging type

Piece

Product type

Multiport terminal

Connection

Jack connector

Cross section (flexible) (max.)

1.5 mm²

Cross section (inflexible) (max.)

1.5 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Multilevel terminal block, PUSH IN, dark beige, 1.5 mm², 500 V, Number of connections:6, number of floors:3, TS 35, V-0

A3T 1.5 VL DL

Technical specifications

Packaging type: Piece

Product type: Multiport terminal

Features: built-in jumper

Connection: Jack connector

Cross section (flexible) (min.): 0.14 mm²

Cross section (flexible) (max.): 1.5 mm²

Cross section (inflexible) (min.): 0.14 mm²

Cross section (inflexible) (max.): 1.5 mm²

No. of rows: 3

Pins per row: 2

Factory colour: Beige

Nominal current: 15 A

Nominal current - rounded value: 15 A

Nominal voltage: 500 V

Manufacturer part #: 2856220000

Content: 50 pc(s)

Type: A3T 1.5 VL DL

Dim: (L x W) 53 mm x 3.5 mm

Width: 3.5 mm

Length: 53 mm

Flammability rating: V0

Connector colour: Beige

Insulation material: Thermoplastic

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection

Content

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Product type

Weidmüller 2718300000 Splitter Jack connector Green 20 pc(s) Piece

Item no:3750212

Unavailable

Conrad Electronic

Jack connector

20 pc(s)

6 mm²

0.34 mm²

6 mm²

0.34 mm²

Green

41 A

Splitter

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728700000 Serial continuity Plug & Clip Beige 5 pc(s) Piece

Item no:3750215

Unavailable

Conrad Electronic

Plug & Clip

5 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Beige

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728710000 Serial continuity Plug & Clip Blue 5 pc(s) Piece

Item no:3750216

Unavailable

Conrad Electronic

Plug & Clip

5 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Blue

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728720000 Serial continuity Plug & Clip 5 pc(s) Piece

Item no:3750217

Unavailable

Conrad Electronic

Plug & Clip

5 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728730000 Serial continuity Plug & Clip Beige 1 pc(s) Piece

Item no:3745686

Unavailable

Conrad Electronic

Plug & Clip

1 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Beige

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728740000 Serial continuity Plug & Clip Beige 1 pc(s) Piece

Item no:3754289

Unavailable

Conrad Electronic

Plug & Clip

1 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Beige

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728750000 Serial continuity Plug & Clip Beige 1 pc(s) Piece

Item no:3745687

Unavailable

Conrad Electronic

Plug & Clip

1 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Beige

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728770000 Serial continuity Plug & Clip Beige 5 pc(s) Piece

Item no:3750223

Unavailable

Conrad Electronic

Plug & Clip

5 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Beige

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728780000 Serial continuity Plug & Clip Blue 5 pc(s) Piece

Item no:3750226

Unavailable

Conrad Electronic

Plug & Clip

5 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

Blue

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2728790000 Serial continuity Plug & Clip 5 pc(s) Piece

Item no:3750228

Unavailable

Conrad Electronic

Plug & Clip

5 pc(s)

185 mm²

50 mm²

185 mm²

50 mm²

309 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3750376 Weidmüller 2856220000 Multiport terminal Jack connector Beige 50 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3750376 Weidmüller 2856220000 Multiport terminal Jack connector Beige 50 pc(s) Piece

Description

Series terminal with several levels for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. Space-saving design.

This text is machine translated.
