Weidmüller 2874880000 PG terminal Clamp Configuration: Terre Green-yellow 50 pc(s)
Product type
PG terminal
Connection
Clamp
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

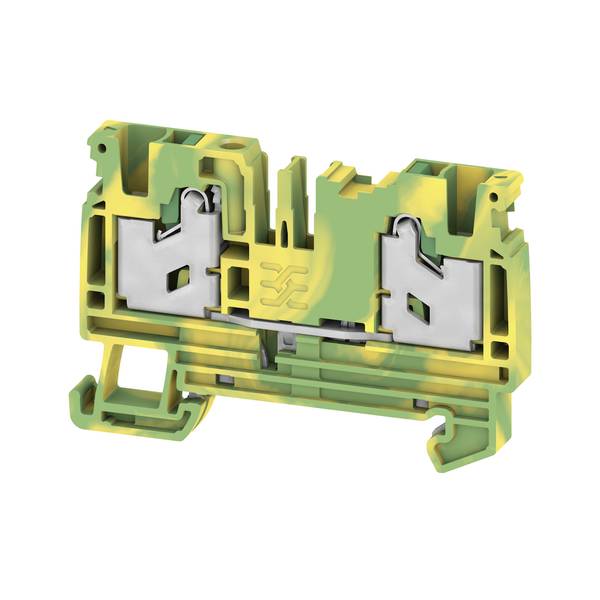

Protective conductor terminal block, SNAP IN, green/yellow, 4 mm², 1000 V, Number of connections: 2, number of floors: 1, TS 35, V-0, Wemid
- S2C 4 PE
Technical specifications
- Product type
PG terminal
- Connection
Clamp
- Configuration
Terre
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Green-yellow
- Manufacturer part #
2874880000
- Content
50 pc(s)
- Type
S2C 4 PE
- Dim
(L x W) 41.5 mm x 6.1 mm
- Width
6.1 mm
- Length
41.5 mm
- Flammability rating
V0
- Connector colour
Green-yellow
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750511 Weidmüller 2874880000 PG terminal Clamp Configuration: Terre Green-yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3750511 Weidmüller 2874880000 PG terminal Clamp Configuration: Terre Green-yellow 50 pc(s)
Description
Serial terminal for connecting or connecting protective conductors with the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
