Weidmüller 2874940000 Serial continuity Clamp Blue 50 pc(s) Piece
Packaging type
Piece
Product type
Serial continuity
Connection
Clamp
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

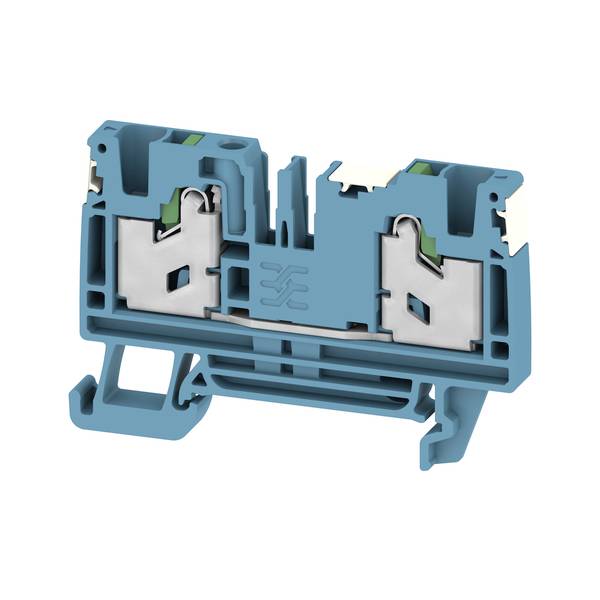

Through terminal block, SNAP IN, blue, 4 mm², 32 A, 1000 V, number of connections 2
- S2C 4 DL BL
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Clamp
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
2874940000
- Content
50 pc(s)
- Type
S2C 4 DL BL
- Dim
(L x W) 41.5 mm x 6.1 mm
- Width
6.1 mm
- Length
41.5 mm
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750545 Weidmüller 2874940000 Serial continuity Clamp Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3750545 Weidmüller 2874940000 Serial continuity Clamp Blue 50 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
This text is machine translated.
