Name: Weidmüller 2902430000 Multiport terminal Beige 50 pc(s)
Brand: Weidmüller
SKU: 3750546

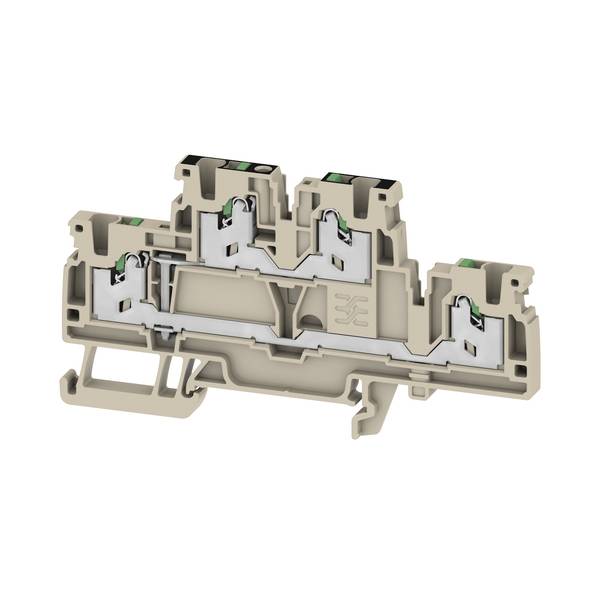

Cross-section of a beige electrical terminal block showing internal metal contacts and wiring channels.

Product type

Multiport terminal

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (max.)

2.5 mm²

Nominal current - rounded value

22 A

Content

50 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Multiport terminal

Features: built-in jumper

Cross section (flexible) (min.): 0.34 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.34 mm²

Cross section (inflexible) (max.): 2.5 mm²

No. of rows: 2

Pins per row: 2

Factory colour: Beige

Nominal current: 22 A

Nominal current - rounded value: 22 A

Nominal voltage: 800 V

Manufacturer part #: 2902430000

Content: 50 pc(s)

Type: S2T 2.5 VL

Dim: (L x W) 52 mm x 5.1 mm

Width: 5.1 mm

Length: 52 mm

Flammability rating: V0

Connector colour: Beige

Insulation material: Thermoplastic

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connection

Content

Cross section (flexible) (max.)

Cross section (flexible) (min.)

Cross section (inflexible) (max.)

Cross section (inflexible) (min.)

Factory colour

Nominal current - rounded value

Product type

Weidmüller 2862960000 Serial continuity Clamp Beige 100 pc(s) Piece

Item no:3750405

Unavailable

Conrad Electronic

Clamp

100 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Beige

24 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2862970000 Serial continuity Clamp Beige 100 pc(s)

Item no:3750408

Unavailable

Conrad Electronic

Clamp

100 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Beige

24 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2862980000 Serial continuity Beige 100 pc(s)

Item no:3750411

Unavailable

Conrad Electronic

100 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Beige

24 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2862990000 Serial continuity Clamp Blue 100 pc(s) Piece

Item no:3750415

Unavailable

Conrad Electronic

Clamp

100 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Blue

24 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2863000000 Serial continuity Blue 100 pc(s)

Item no:3750418

Unavailable

Conrad Electronic

100 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Blue

24 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2863010000 Serial continuity Blue 100 pc(s) Piece

Item no:3750422

Unavailable

Conrad Electronic

100 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Blue

24 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2863020000 PG terminal Clamp Configuration: Terre Green-yellow 50 pc(s) Piece

Item no:3750430

Unavailable

Conrad Electronic

Clamp

50 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Green-yellow

PG terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2863030000 PG terminal Clamp Green-yellow 50 pc(s)

Item no:3750440

Unavailable

Conrad Electronic

Clamp

50 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Green-yellow

PG terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2863040000 PG terminal Green-yellow 50 pc(s)

Item no:3750447

Unavailable

Conrad Electronic

50 pc(s)

4 mm²

0.34 mm²

2.5 mm²

0.34 mm²

Green-yellow

PG terminal

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 2874820000 Serial continuity Beige 50 pc(s) Piece

Item no:3750471

Unavailable

Conrad Electronic

50 pc(s)

6 mm²

0.75 mm²

6 mm²

0.75 mm²

Beige

32 A

Serial continuity

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3750546 Weidmüller 2902430000 Multiport terminal Beige 50 pc(s)

User & Safety Instructions

User & Safety Instructions 3750546 Weidmüller 2902430000 Multiport terminal Beige 50 pc(s)

Description

Series terminal with several levels for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. Space-saving design.
