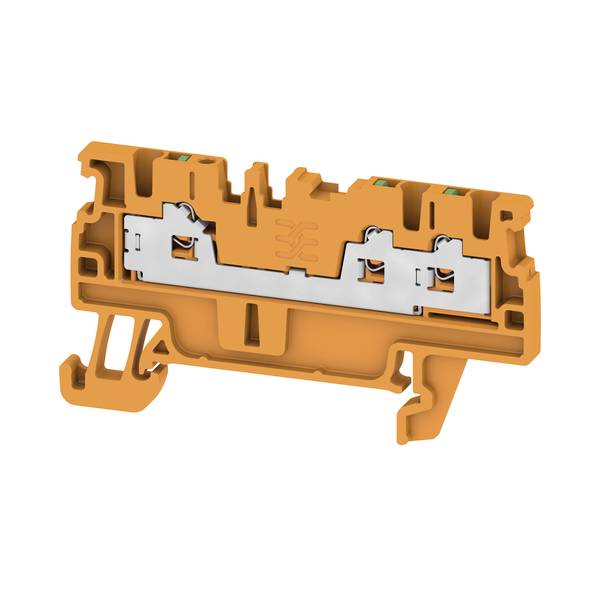

Weidmüller 2986600000 Serial continuity Orange 50 pc(s) Piece
Packaging type
Piece
Product type
Serial continuity
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Continuity serial terminal, SNAP IN, orange, 1.5 mm², 17.5 A, 500 V, number of connections 3
- S3C 1.5 OR
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Cross section (flexible) (min.)
0.34 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
1
- Pins per row
3
- Factory colour
Orange
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
2986600000
- Content
50 pc(s)
- Type
S3C 1.5 OR
- Dim
(L x W) 33.5 mm x 3.5 mm
- Width
3.5 mm
- Length
33.5 mm
- Flammability rating
V0
- Connector colour
Orange
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Orange
3.5 mm
61.5 mm
33.5 mm
500 V
-60-130 °C
TRUE
Other
Other
1
3
FALSE
0.25-1.5 mm²
0.34-1.5 mm²
0.34-1.5 mm²
0.25-1.5 mm²
Thermoplastic
17.5 A
FALSE
Copper
V0
Documents & Downloads
Datasheet
Datasheet 3749405 Weidmüller 2986600000 Serial continuity Orange 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3749405 Weidmüller 2986600000 Serial continuity Orange 50 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
This text is machine translated.
This text is machine translated.
