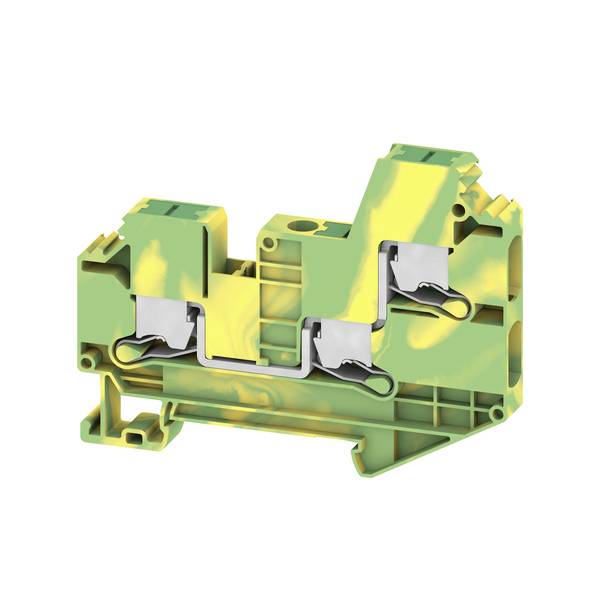

Weidmüller 3037430000 PG terminal Clamp Green-yellow 50 pc(s)
Product type
PG terminal
Connection
Clamp
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
50 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
PG terminal
- Connection
Clamp
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
3
- Factory colour
Green-yellow
- Manufacturer part #
3037430000
- Content
50 pc(s)
- Type
SL3C 6 PE
- Dim
(L x W) 57.6 mm x 8.2 mm
- Width
8.2 mm
- Length
57.6 mm
- Flammability rating
V0
- Connector colour
Green-yellow
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750934 Weidmüller 3037430000 PG terminal Clamp Green-yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3750934 Weidmüller 3037430000 PG terminal Clamp Green-yellow 50 pc(s)
Description
Serial terminal for connecting or connecting protective conductors with the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
This text is machine translated.
This text is machine translated.
