Weidmüller 3037450000 Serial continuity Clamp Configuration: Single Blue 50 pc(s) Piece
Packaging type
Piece
Product type
Serial continuity
Connection
Clamp
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Clamp
- Configuration
Single
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
4
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
3037450000
- Content
50 pc(s)
- Type
SL4C 6 BL
- Dim
(L x W) 57.6 mm x 8.2 mm
- Width
8.2 mm
- Length
57.6 mm
- Flammability rating
V0
- Connector colour
Blue
- Insulation material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3750944 Weidmüller 3037450000 Serial continuity Clamp Configuration: Single Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3750944 Weidmüller 3037450000 Serial continuity Clamp Configuration: Single Blue 50 pc(s) Piece
Description

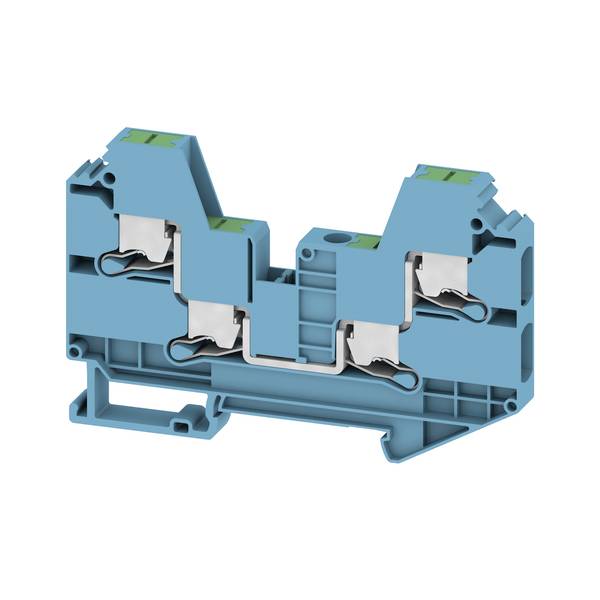

A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
