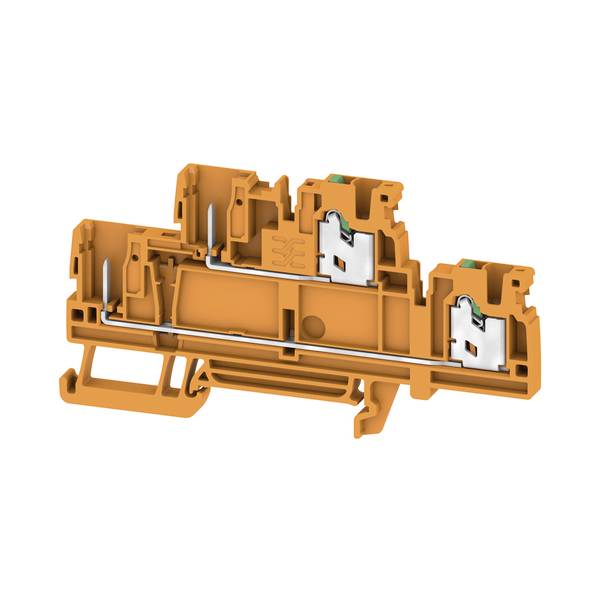

Weidmüller 3051880000 Terminal Spring-loaded terminal Orange 50 pc(s) Piece
Packaging type
Piece
Product type
Terminal
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.5 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Terminal
- Features
+ push-in spring bracket
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
0.34 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.34 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Orange
- Nominal current
22 A
- Nominal current - rounded value
22 A
- Manufacturer part #
3051880000
- Content
50 pc(s)
- Type
SPGTB 2.5 2T 4C/2 OR
- Dim
(L x W) 51.7 mm x 5.1 mm
- Width
5.1 mm
- Length
51.7 mm
- Flammability rating
V0
- Connector colour
Orange
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Orange
5.1 mm
96 mm
51.7 mm
-60-130 °C
TRUE
Clip connection
2
2
FALSE
0.34-2.5 mm²
0.34-2.5 mm²
0.34-4 mm²
0.34-2.5 mm²
Thermoplastic
22 A
FALSE
Copper
V0
Documents & Downloads
Datasheet
Datasheet 3749638 Weidmüller 3051880000 Terminal Spring-loaded terminal Orange 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3749638 Weidmüller 3051880000 Terminal Spring-loaded terminal Orange 50 pc(s) Piece
Description
Terminal block for plug connections.
