Weidmüller 3109250000 Serial continuity Brown 100 pc(s) Piece
Packaging type
Piece
Product type
Serial continuity
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

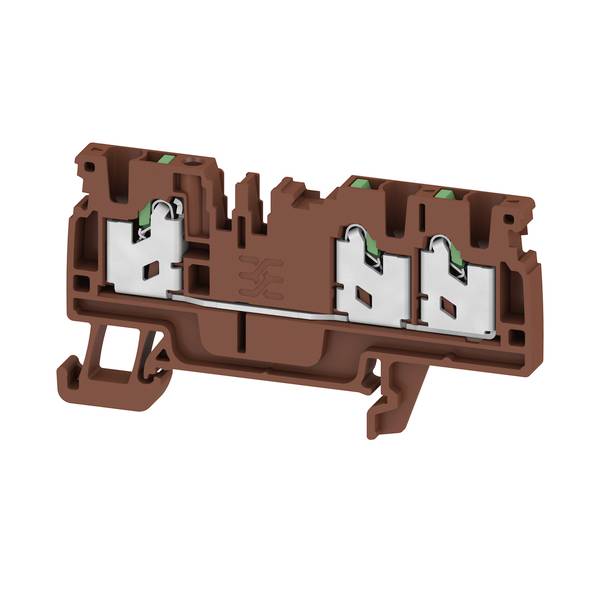

Through terminal block, SNAP IN, Brown, 2.5 mm², 24 A, 800 V, number of connections 3
- S3C 2.5 BR
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Cross section (flexible) (min.)
0.34 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.34 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- No. of rows
1
- Pins per row
3
- Factory colour
Brown
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Manufacturer part #
3109250000
- Content
100 pc(s)
- Type
S3C 2.5 BR
- Dim
(L x W) 38 mm x 5.1 mm
- Width
5.1 mm
- Length
38 mm
- Flammability rating
V0
- Connector colour
Brown
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Brown
5.1 mm
71.5 mm
38 mm
800 V
-60-130 °C
TRUE
Other
Other
1
3
FALSE
0.34-2.5 mm²
0.34-2.5 mm²
0.34-4 mm²
0.34-2.5 mm²
Thermoplastic
24 A
FALSE
Copper
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3751196 Weidmüller 3109250000 Serial continuity Brown 100 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3751196 Weidmüller 3109250000 Serial continuity Brown 100 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
This text is machine translated.
This text is machine translated.
