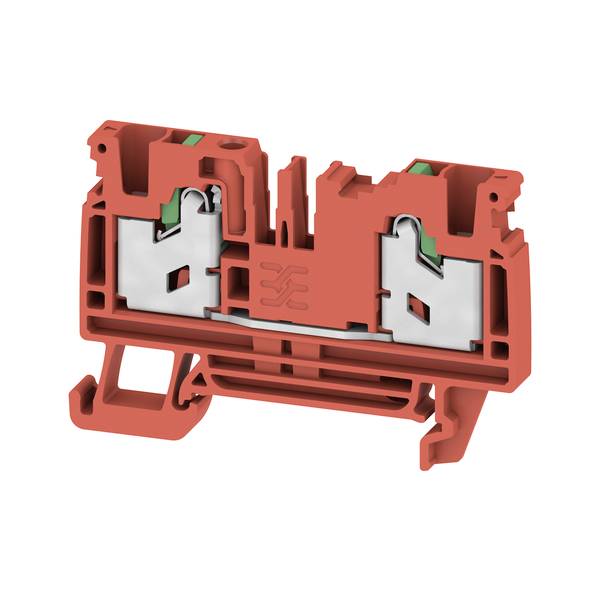

Weidmüller 3109440000 Serial continuity Clamp Red 50 pc(s) Piece
Packaging type
Piece
Product type
Serial continuity
Connection
Clamp
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Clamp
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Red
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
1000 V
- Manufacturer part #
3109440000
- Content
50 pc(s)
- Type
S2C 4 RD
- Dim
(L x W) 41.5 mm x 6.1 mm
- Width
6.1 mm
- Length
41.5 mm
- Flammability rating
V0
- Connector colour
Red
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Red
6.1 mm
62 mm
41.5 mm
1000 V
-60-130 °C
TRUE
Other
Other
1
2
FALSE
0.75-6 mm²
0.75-4 mm²
0.75-6 mm²
0.75-4 mm²
Thermoplastic
32 A
FALSE
Copper
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3751104 Weidmüller 3109440000 Serial continuity Clamp Red 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3751104 Weidmüller 3109440000 Serial continuity Clamp Red 50 pc(s) Piece
Description
A terminal block for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity.
This text is machine translated.
This text is machine translated.
