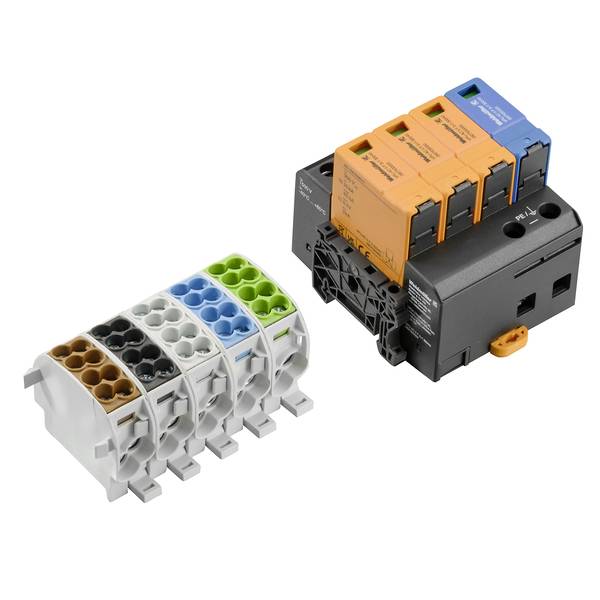

Weidmüller 8000122108 Multiport terminal Screws 1 pc(s) Piece
Packaging type
Piece
Product type
Multiport terminal
Connection
Screws
Cross section (flexible) (max.)
15 mm²
Cross section (inflexible) (max.)
15 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Multiport terminal
- Features
high type
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
15 mm²
- Cross section (flexible) (max.)
15 mm²
- Cross section (inflexible) (min.)
15 mm²
- Cross section (inflexible) (max.)
15 mm²
- No. of rows
1
- Nominal current
152 A
- Nominal current - rounded value
152 A
- Manufacturer part #
8000122108
- Content
1 pc(s)
- Type
TR BD WPD OVP2 W/O TS
- Dim
(L x W) 68 mm x 174.7 mm
- Width
174.7 mm
- Length
68 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3752192 Weidmüller 8000122108 Multiport terminal Screws 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3752192 Weidmüller 8000122108 Multiport terminal Screws 1 pc(s) Piece
Description
Series terminal with several levels for connecting or connecting conductors with permanently safe contact. Hardened steel withstands the mechanical forces, tin-coated copper provides the best conductivity. Space-saving design.
