Name: Weidmüller 8813140000 Network cable CAT 7 S/FTP 4 x 2 x 0.25 mm² Green 100 m
Brand: Weidmüller
SKU: 258347

'A green cable reel on a white background.'

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

No. of leads

8 x

Cross section (each core)

0.25 mm²

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Installation cable CAT 7 S/FTP PUR 100 m

IE-7 IC 4x2xAWG23/1-PUR

Technical specifications

Net weight: 6174 g
Insulation diameter: 1.4 mm
Test voltage Wire-to-wire shield: 700 V AC
Deviation: 5 ns/100m
conductor material: Bare copper conductor
strands: 1
overall shield: Braided shield made of copper wires
material sheath: PUR
sheath diameter, min.: 8 mm
bending radius, min., once: 5 *Diameter
bending radius min, repeated: 10 *
Insulation resistance: 5000 MΩ
Silicon-free diameter: Yes

Product type: Network cable

: CAT 7

: S/FTP

No. of leads: 8 x

Cross section (each core): 0.25 mm²

Cross section: 4 x 2 x 0.25 mm²

Cable features: Halogen-free
Flame-retardant
Simplex
PUR coating
UV-resistant
Common shield
Twin shield

Outside Ø: 8.4 mm

Factory colour: Green

Max. frequency: 600 MHz

Content: 100 m

AWG max.: 23

Packaged: Yes

Sold per metre: No

Manufacturer part #: 8813140000

Type: IE-7IC4X2XAWG23/1-PUR

Insulation material: PE

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +80 °C

Halogen-free: Yes

Twisted pair cabling (part 1): Yes (1)

Variants(All information is without VAT, plus shipping costs)

AWG max.

Shielding

Factory colour

Content

No. of leads

Specification

Cross section (each core)

Cable features

Weidmüller 8813140000 Network cable CAT 7 S/FTP 4 x 2 x 0.25 mm² Green 100 m

Item no:258347

Unavailable

Conrad Electronic

This article

S/FTP

Green

100 m

8 x

CAT 7

0.25 mm²

Halogen-free

Piece(s)

Minimum order quantity: 1

Multiple: 1

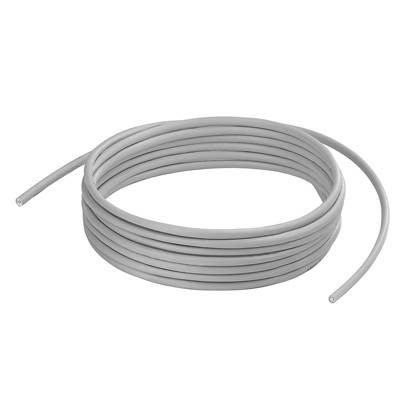

Weidmüller 1273090000 Network cable CAT 7 S/FTP 4 x 2 x 0.1 mm² + 0 2 x 0.1 mm² Light grey 305 m

Item no:202093

Unavailable

Conrad Electronic

S/FTP

Light grey

305 m

8 x

CAT 7

0.1 mm²

Halogen-free

Piece(s)

Minimum order quantity: 1

Multiple: 1

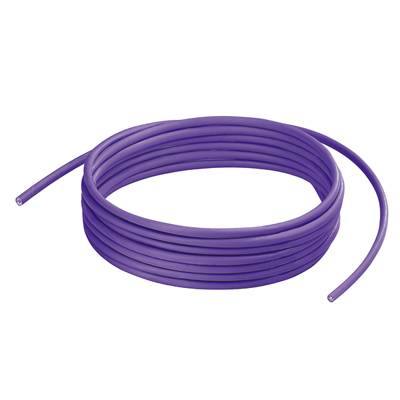

Weidmüller 1333160000 Network cable CAT 7 S/FTP 4 x 2 x 0.1 mm² + 4 x 2 x 0.1 mm² Magenta 305 m

Item no:202699

Unavailable

Conrad Electronic

S/FTP

Magenta

305 m

8 x

CAT 7

0.1 mm²

Halogen-free

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813130000 Network cable CAT 7 S/FTP 4 x 2 x 0.25 mm² + 0.25 mm² Green 100 m

Item no:258346

Unavailable

Conrad Electronic

S/FTP

Green

100 m

8 x

CAT 7

0.25 mm²

Flame-retardant

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813150000 Network cable CAT 5 SF/UTP 4 x 2 x 0.21 mm² + 0 2 x 0.21 mm² Green 100 m

Item no:258348

Unavailable

Conrad Electronic

SF/UTP

Green

100 m

8 x

CAT 5

0.21 mm²

Flame-retardant

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813160000 Network cable CAT 5 SF/UTP 4 x 2 x 0.21 mm² Green 100 m

Item no:258349

Unavailable

Conrad Electronic

SF/UTP

Green

100 m

8 x

CAT 5

0.21 mm²

Halogen-free

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813170000 Network cable CAT 7 S/FTP 4 x 2 x 0.13 mm² + 4 x 2 x 0.13 mm² Green 100 m

Item no:258351

Unavailable

Conrad Electronic

S/FTP

Green

100 m

8 x

CAT 7

0.13 mm²

Flame-retardant

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813180000 Network cable CAT 7 S/FTP 4 x 2 x 0.13 mm² Green 100 m

Item no:258352

Unavailable

Conrad Electronic

S/FTP

Green

100 m

8 x

CAT 7

0.13 mm²

Halogen-free

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813190000 Network cable CAT 5 SF/UTP 4 x 2 x 0.13 mm² + 0 2 x 0.13 mm² Green 100 m

Item no:258353

Unavailable

Conrad Electronic

SF/UTP

Green

100 m

8 x

CAT 5

0.13 mm²

Flame-retardant

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller 8813200000 Network cable CAT 5 SF/UTP 4 x 2 x 0.13 mm² Green 100 m

Item no:258354

Unavailable

Conrad Electronic

SF/UTP

Green

100 m

8 x

CAT 5

0.13 mm²

Halogen-free

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 258347 Weidmüller 8813140000 Network cable CAT 7 S/FTP 4 x 2 x 0.25 mm² Green 100 m

User & Safety Instructions

User & Safety Instructions 258347 Weidmüller 8813140000 Network cable CAT 7 S/FTP 4 x 2 x 0.25 mm² Green 100 m

Description

Installation cable, CAT 7 (ISO/IEC 11801), PUR, 100 m. Copper cable, rigid, 4 x 2 x AWG23/1, Cat 7, green.

This text is machine translated.

Description

Installation cable, CAT 7 (ISO/IEC 11801), PUR, 100 m. Copper cable, rigid, 4 x 2 x AWG23/1, Cat 7, green.

This text is machine translated.
