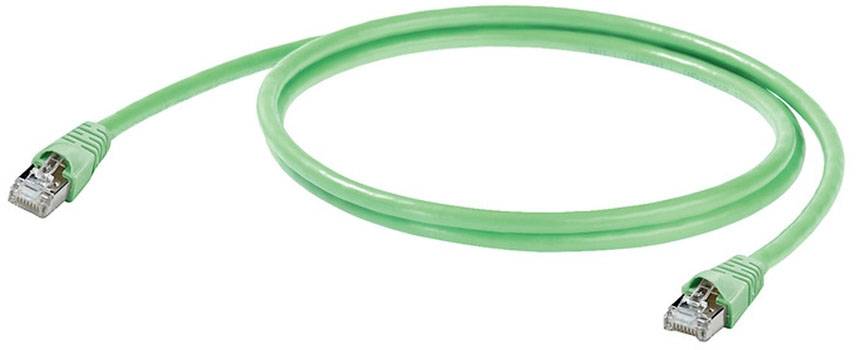

Weidmüller 8941350020 Sensor/actuator data cable (pre-fab) RJ45 plug enclosure 2.00 m No. of pins (RJ): 8 1 pc(s)
Product type
Sensor/actuator data cable (pre-fab)
Connector type
RJ45 plug enclosure
Connector standard
RJ45
Connection side A
RJ45
Connection side B
RJ45
EAN:
Part number:
Item no:
Technical specifications
- Insulation: PE
- Speed: 10 GBit/s
- Number of wires: 8
- Insulation diameter: 1.02 mm
- Storage temperature: -40 °C - +85 °C
- Insertion temperature: -10 °C - +60 °C
- Test voltage Wire-to-wire shield: 750 V/DC, 1 min
- characteristic impedance: 100 ± 15 Ω at 1-100 MHz, 100 ± 22 Ω at 100-250 MHz, 100 ± 25 Ω at 250-600 MHz
- Deviation: 25 ns/100m
- Capacity at 1 kHz: 46 nF/km
- Signal runtime: 4.27 ns/m
- conductor material: Multi-wire tinned copper conductor
- strands: 7
- arrangement of wires: Twisted pair
- color sequence wires - wire pairs: White - blue, white - orange, white - green, white - brown
- Shielding: S/FTP
- sheath diameter: 6 mm - 6.4 mm
- bending radius, min., once: 5 *diameter
- bending radius min, repeated: 10 *diameter
- shielding core pair: Aluminum foil
- Type
IE-C6FS8UG0020A40A40-G
- Product type
Sensor/actuator data cable (pre-fab)
- Connector type
RJ45 plug enclosure
- Connector standard
RJ45
- Connection side A
RJ45
- Connection side B
RJ45
- No. of pins
8
- Cable length
2.00 m
- Jacket material
PUR
- Cross-section (sensor/actuator wiring)
0.1 mm²
- Connection
RJ45
- Factory colour
Green
- Cable colour
Green
- Contact material
Copper
- Contact surface
Tin plated
IP20
- Features
Halogen-free
flame-retardant
UV-resistant
Oil-resistant
Silicone-free
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
8941350020
- Content
1 pc(s)
- Cable Ø (max.)
6.4 mm
- Cable Ø up to
6 mm
- Cable Ø range
6 - 6.4 mm
- UKCA
yes
