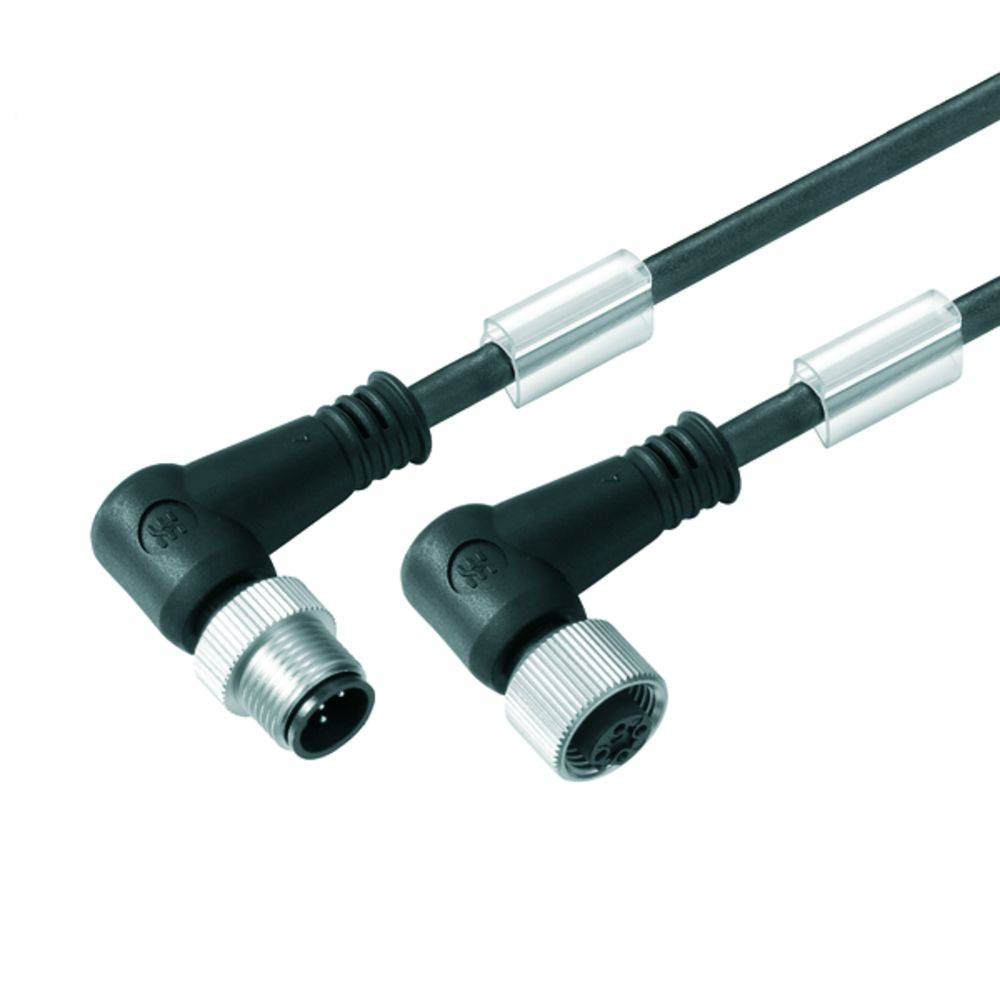

Weidmüller 9457900250 Sensor/actuator connector (pre-fab) M12 Plug, right angle, Socket, right angle 2.50 m No. of pins
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, right angle
Socket, right angle
Connector standard
Sensor connector
Connection side A
M12 socket, right angle
Connection side B
M12 socket, right angle
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Connecting cable
- SAIL-M12WM 12W -5-2. 5 U
Technical specifications
- Type
SAIL-M12WM12W-5-2.5U
- Product type
Sensor/actuator connector (pre-fab)
- Connector type
Plug, right angle
Socket, right angle
- Connector standard
Sensor connector
- Connection side A
M12 socket, right angle
- Connection side B
M12 socket, right angle
- No. of pins
5
- Cable length
2.50 m
- Jacket material
PUR
- Nominal voltage
125 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Thread type connection side
M12
- Cable colour
Black
- Coding
A
- Min. temperature
-25 °C
- Max. temperature
+80 °C
- Seal type
Screw-on
- Manufacturer part #
9457900250
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cable diameter (details)
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 260439 Weidmüller 9457900250 Sensor/actuator connector (pre-fab) M12 Plug, right angle, Socket, right angle 2.50 m No. of pins
User & Safety Instructions
User & Safety Instructions 260439 Weidmüller 9457900250 Sensor/actuator connector (pre-fab) M12 Plug, right angle, Socket, right angle 2.50 m No. of pins
Description
Connection cable. M12/M12, pin, angled connector, angled LED: No, PUR, halogens: No, poles: 5, shielded: No, 2.5 m. Sensor/actuator cables are used for the wiring of sensors and actuators, and to transfer data or performance in different applications. The molded cable offers a factory connected and tested the connection of the connector to the cable. The lines can be exposed to a wide range of conditions, such as: moisture, dust, heat, cold, shock or vibration. Exactly at this point, our developers and a wide variety of different M8 and M12 sensor/actuator cables designed that also make sure exactly what you need for your application.
