Weidmüller CLI C 2-4 GE/SW B CD Ring Imprint B Outside diameter range 4 up to 10 mm 1568261639
EAN:
Part number:
Item no:
Product type
Ring
Imprint
B
Suitable for outside Ø (min.)
4 mm
Suitable for outside Ø (max.)
10 mm
Dim
(L x W x H) 8 x 7 x 4 mm
Datasheet (PDF)
Highlights & Details
Lead marker cable line ® CLI C
- No. of markers: 250
- Imprint: B
Technical specifications
- Net weight: 0.22 g
- Imprint color: Black
- Printing method: Hot embossed
- Material color according to resistance code: 4
- Orientation of imprint: Horizontal
- Insulation diameter, max.: 10 mm
- conductor cross-section, max.: 16 mm²
- conductor cross-section, min.: 2.5 mm²
- Product type
Ring
- Dim
(L x W x H) 8 x 7 x 4 mm
- Imprint
B
- Type
Letters
- Series
CableLine® CLI C
- Factory colour
Yellow
- Material
PVC
- Suitable for outside Ø (min.)
4 mm
- Suitable for outside Ø (max.)
10 mm
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Features
UL94 flammability rating
halogen-free
- No. of markers
250
- Outside diameter range
4 up to 10 mm
- Colour-coded
Yes
- Halogen-free
Yes
- Manufacturer part #
1568261639
- Industrial packaging
Yes
- Content
250 pc(s)
- Width
7 mm
- Height
4 mm
- Length
8 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 322916 Weidmüller CLI C 2-4 GE/SW B CD Ring Imprint B Outside diameter range 4 up to 10 mm 1568261639
User & Safety Instructions
User & Safety Instructions 322916 Weidmüller CLI C 2-4 GE/SW B CD Ring Imprint B Outside diameter range 4 up to 10 mm 1568261639
Description

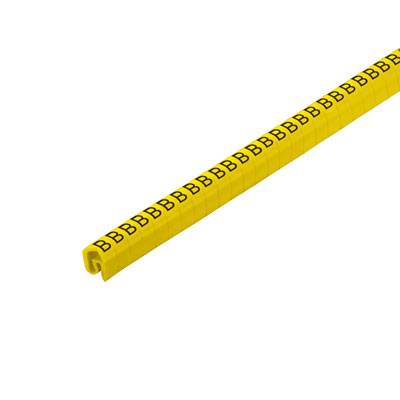

Lead marker. 4 x 7 mm, PVC, soft, without cadmium, color: yellow. CLI C-lead marker are not connected conductor mounted. Conductor cross-sections of 0.5 mm² up to a maximum of 70 mm² can be with four different sizes. The markers are printed. Closed marker, safe and adjusted to non-connected lines. Wide area of use by means of a special bellows profile with spring effect. Fast, easy mounting with a flick of the wrist. Permanent marking of high quality. Best contrasts for optimum readability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- roller
