Weidmüller CLI R 1-3 BR/WS 1 Ring Imprint 1 Outside diameter range 2.5 up to 5 mm 0572901505
Product type
Ring
Imprint
1
Suitable for outside Ø (min.)
2.5 mm
Suitable for outside Ø (max.)
5 mm
Dim
(L x W x H) 5 x 4.2 x 3 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Lead marker with mounting pin cable line ® CLI R
- No. of markers: 10
- Imprint: 1
Our service for you
Technical specifications
- Net weight: 2.3 g
- Printing color: White
- Printing method: Hot embossed
- Material color according to resistance code: 1
- Orientation of the imprint: Horizontal
- conductor cross-section, max.: 4 mm²
- conductor cross-section, min.: 1.5 mm²
- Number of each mandrel: 25
- Product type
Ring
- Dim
(L x W x H) 5 x 4.2 x 3 mm
- Imprint
1
- Type
Numbers
- Series
CableLine® CLI R
- Factory colour
Brown
- Material
PVC
- Suitable for outside Ø (min.)
2.5 mm
- Suitable for outside Ø (max.)
5 mm
- Min. temperature
-30 °C
- Max. temperature
+80 °C
- Features
UL94 flammability rating
halogen-free
- No. of markers
10
- Outside diameter range
2.5 up to 5 mm
- Colour-coded
Yes
- Halogen-free
Yes
- Manufacturer part #
0572901505
- Industrial packaging
Yes
- Content
250 pc(s)
- Width
4.2 mm
- Height
3 mm
- Length
5 mm
Documents & Downloads
Datasheet
Datasheet 279193 Weidmüller CLI R 1-3 BR/WS 1 Ring Imprint 1 Outside diameter range 2.5 up to 5 mm 0572901505
User & Safety Instructions
User & Safety Instructions 279193 Weidmüller CLI R 1-3 BR/WS 1 Ring Imprint 1 Outside diameter range 2.5 up to 5 mm 0572901505
Description

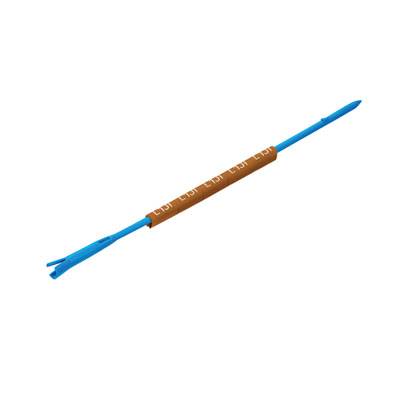

Mounting pin. Lead marker, 3 x 4.2 mm, PVC, soft, without cadmium, color: brown. The Weidmüller product range of conductor and kabelmarkierern offers users solutions for the most diverse applications. The application area ranges from narrow conductors through cables with large outer diameters. The set contains, among other things, combination systems with individual signs, transparent sleeves, heat shrink tubing and marker, which can be attached with cable ties.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 x mounting pin each with 25 markers
