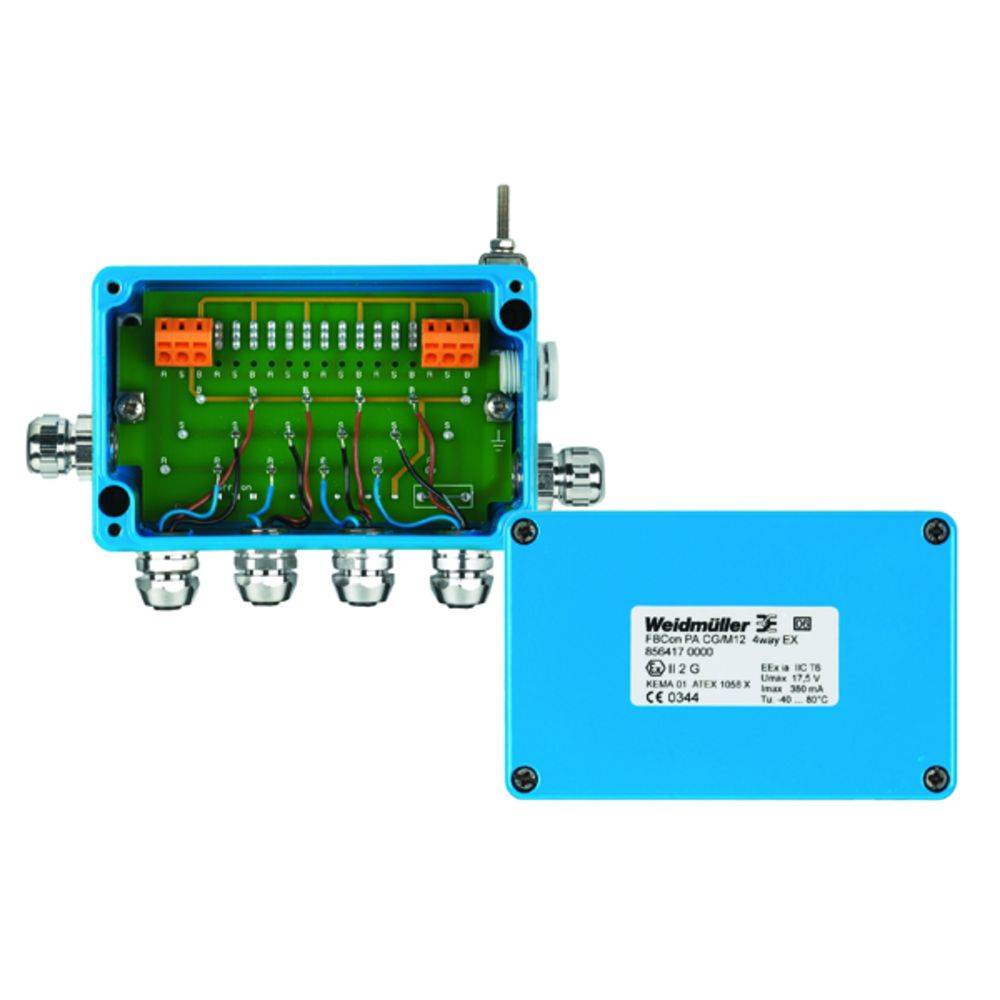

Weidmüller FBCON PA CG/M12 4WAY EX 8564170000 Sensor & actuator box (passive) Profibus PA EEx(ia) standard splitter 1 pc
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Configuration
Single
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Eex(ia) standard splitter for hazardous areas
- FBCon PA CG/M12 4-way Ex
Technical specifications
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Configuration
Single
- Type
FBCON PA CG/M12 4WAY EX
- Trunk line
No
- No. of splitters
4-way
- Status indicator
No LED
- Connection
Spring-loaded terminal
- Width
80 mm
- Length
125 mm
IP66
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Connector type (distribution boxes)
Spring-loaded terminal
- Weight
652 g
- Manufacturer part #
8564170000
- Factory colour
Blue
- Content
1 pc(s)
- Height
37 mm
- Features
EX series compatibility
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258163 Weidmüller FBCON PA CG/M12 4WAY EX 8564170000 Sensor & actuator box (passive) Profibus PA EEx(ia) standard splitter 1 pc
User & Safety Instructions
User & Safety Instructions 258163 Weidmüller FBCON PA CG/M12 4WAY EX 8564170000 Sensor & actuator box (passive) Profibus PA EEx(ia) standard splitter 1 pc
Description
Eex(ia) standard splitter for hazardous areas. EEx(ia) standard splitter for hazardous areas, 4-way distributor EEx, IP66. The FBCon fieldbus distributor are in industry and in the EEx(ia) version available. They are used for the coupling of 1 - 8 field devices or sensors. The connection is made via spur lines. The connection of the stub line is optionally available as M12 plug connection or directly with EMC cable gland. The communication, and the device is powered via a common 2-wire line. The distributors offer depending on the version the following properties: Spring-cage connection. With surge protection for the main line. With current limiter (limiter) for each stub. Emc cable gland. M12 plug connector Outer an earth connection. Uninterrupted bus operation. Industrial design. Bus Termination integrated (non-Ex). EX-Version ATEX. Pressure compensation element, type of protection IP65, IP66, IP67. Stainless steel design, PROFIBUS-PA compatible.
