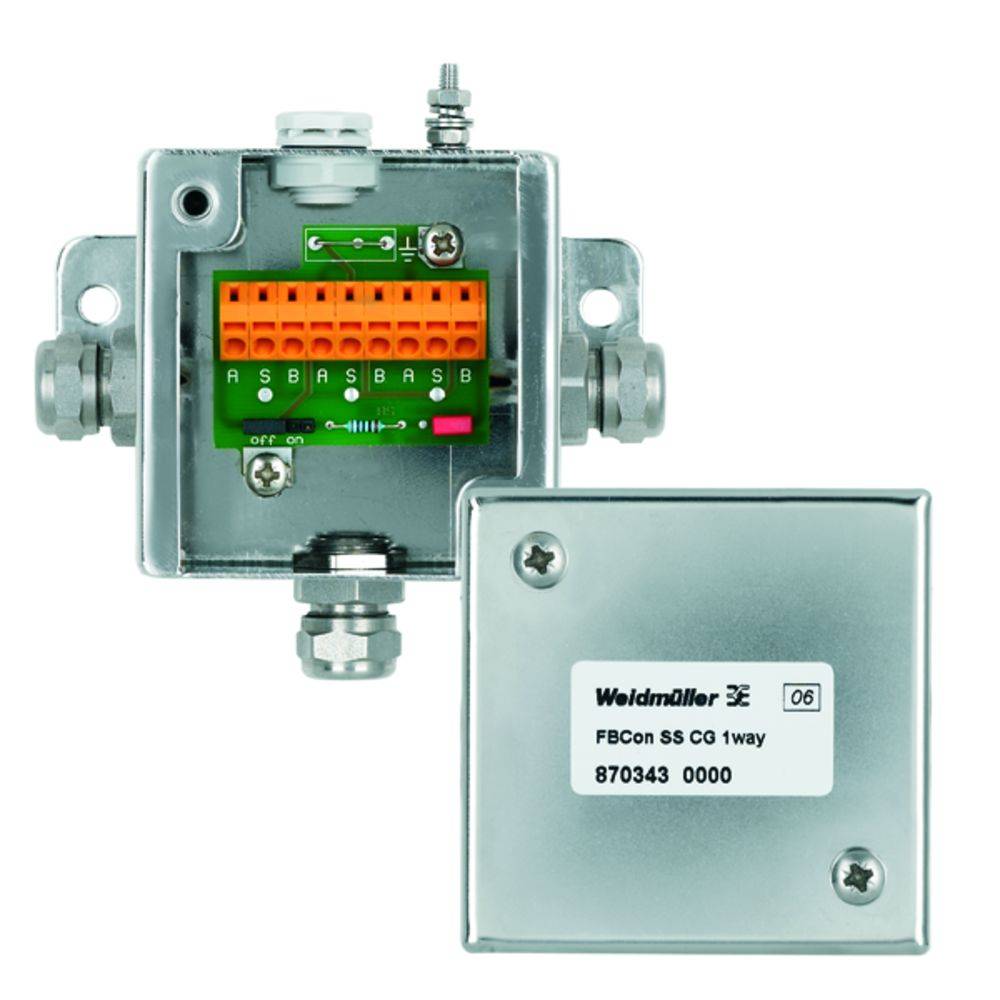

Weidmüller FBCON SS CG 1WAY 8703430000 Sensor & actuator box (passive) Profibus PA standard splitter 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of splitters
1-way
Configuration
Single
Type
FBCON SS CG 1WAY
Datasheet (PDF)
Highlights & Details
Standard splitter
- FBCon SS CG1 way
Technical specifications
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- Configuration
Single
- Type
FBCON SS CG 1WAY
- Trunk line
No
- No. of splitters
1-way
- Status indicator
No LED
- Connection
Spring-loaded terminal
- Width
58 mm
- Length
64 mm
IP66
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Connector type (distribution boxes)
Spring-loaded terminal
- Case material
Stainless steel
- Weight
451 g
- Manufacturer part #
8703430000
- Factory colour
Stainless steel
- Content
1 pc(s)
- Height
36 mm
- Features
EX series compatibility
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 258230 Weidmüller FBCON SS CG 1WAY 8703430000 Sensor & actuator box (passive) Profibus PA standard splitter 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 258230 Weidmüller FBCON SS CG 1WAY 8703430000 Sensor & actuator box (passive) Profibus PA standard splitter 1 pc(s) Piece
Description
Standard Distributor. 1-way distributor, IP66. The FBCon fieldbus distributor are in industry and in the EEx(ia) version available. They are used for the coupling of 1 - 8 field devices or sensors. The connection is made via spur lines. The connection of the stub line is optionally available as M12 plug connection or directly with EMC cable gland. The communication, and the device is powered via a common 2-wire line. The distributors offer depending on the version the following properties: Spring-cage connection. With surge protection for the main line. With current limiter (limiter) for each stub. Emc cable gland. M12 plug connector Outer an earth connection. Uninterrupted bus operation. Industrial design. Bus Termination integrated (non-Ex). EX-Version ATEX. Pressure compensation element, type of protection IP65, IP66, IP67. Stainless steel design, PROFIBUS-PA compatible.
