Image similar

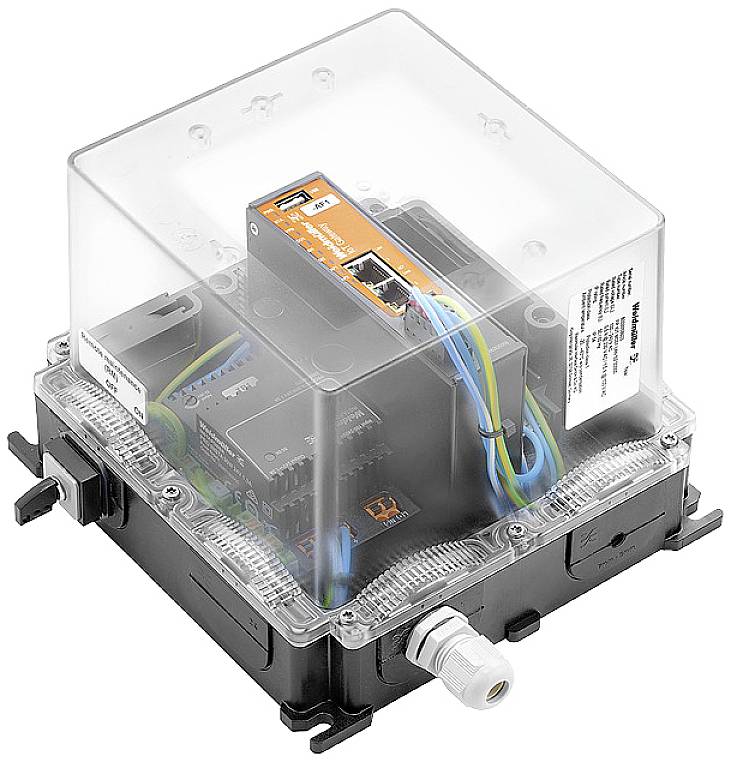

Weidmüller FP IOT MD01 4EU S2 00000 IoT gateway 1000 MBit/s
EAN:
Part number:
Item no:
Technical specifications
- Protection class: IP54Real-time clock: Capacity buffered (max. 5 days)Processor: dual Core ARM Cortex A9, 600 MHzMemory (Flash) 4 GBMEMORY (RAM): 1 GB, DDR3u-link: OpenVPN-based remote access service via the Weidmüller u-link CloudConnection for external antennas: SMA (socket)Serial connection: 1x RS232/RS485USB port: 1x USB 2.0 (type A; max. 500 mA)Mounting type: Screw mounting, wall mounting
- Product type
IoT gateway
- LAN transfer rate
1000 MBit/s
- Interfaces
RS485
Gigabit LAN (1 Gbps)
LAN (10/100 Mbps)
RS232
USB A (USB 2.0)
Radio
- 10/100 Mbps ports
2 x
- 10/100/1000 Mbps ports
2 x
- Power supply (LOV)
via DC in
- Wi-Fi transmission rate (max.)
1000 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2540149 Weidmüller FP IOT MD01 4EU S2 00000 IoT gateway 1000 MBit/s
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
