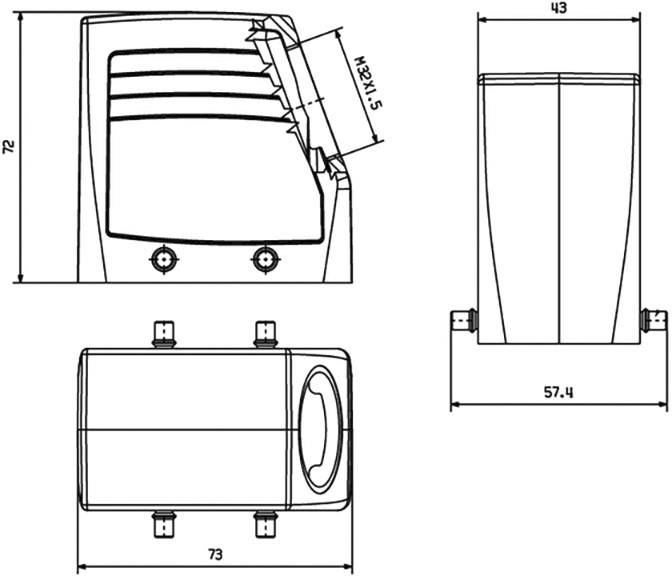

Stroke drawing/circuit diagram
Weidmüller HDC 24D TOLU 1M32G EMC 2544000000 Plug enclosure 1 pc(s)
Product type
Plug enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 24D TOLU 1M32G EMC
Manufacturer part #
2544000000
EAN:
Part number:
Item no:
Technical specifications
- Flammability class: V-0
- EMC Housing: Yes
- Number of cable input top: 1
- Number of cable input side: 0
- Size: 4
- Bracket design: Longitudinal clamp
- Seal: FPM
- suitable for ModulPlug®: Yes
- Top/Bottom section/Cover: Top section
- Type
HDC 24D TOLU 1M32G EMC
- Product type
Plug enclosure
- Manufacturer part #
2544000000
- Features
high type
+ thread
+ longitudinal brace on the bottom part
powder-painted
- Thread size
M32
- Type
Cable input top, connector housing
- Case material
Aluminium, die cast
- Weight
183.2 g
- Content
1 pc(s)
- Width
43 mm
- Height
72 mm
- Length
73 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
