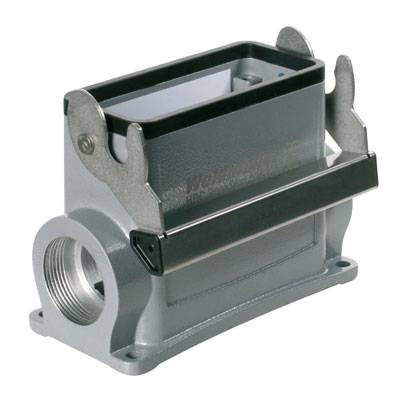

Weidmüller HDC 40D SLU 2M32G 1804660000 Socket enclosure 1 pc(s)
Product type
Socket enclosure
Thread size
M32
Case material
Aluminium, die cast
Type
HDC 40D SLU 2M32G
Series
RockStar® HDC 40D
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Connector housing
- HDC40D SLU 2M 32G
Technical specifications
- Wide housing C: 43 mm
- Height Housing B: 84 mm
- Length Housing: 93.3 mm
- Torque: 1.2 Nm
- EMC Housing: No
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Number of cable input above: 0
- Number of cable input side: 2
- Design: High
- Size: 6
- Bracket: Suitable for
- ModulPlug®: Yes
- Size of cable inputs: M 32
- Top/bottom part/cover: Lower section
- Mounting dimensions Width: 105 mm
- Mounting dimensions Height: 45 mm
- Hole spacing Length A2: 105 mm
- Seal: NBR
- Width Socket C1: 56.5 mm
- Height Socket B1: 5 mm
- Type
HDC 40D SLU 2M32G
- Product type
Socket enclosure
- Series
RockStar® HDC 40D
- Manufacturer part #
1804660000
- Features
+ longitudinal brace on the bottom part
high type
2x cable entry (lateral)
+ thread
- Thread size
M32
- Case material
Aluminium, die cast
- Factory colour
Grey
- Weight
417 g
- Content
1 pc(s)
- Width
79.5 mm
- Height
84 mm
- Length
117 mm
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203832 Weidmüller HDC 40D SLU 2M32G 1804660000 Socket enclosure 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203832 Weidmüller HDC 40D SLU 2M32G 1804660000 Socket enclosure 1 pc(s)
Description
Connector housing. HDC-casing, size: 6, protection class IP 65, socket housing, longitudinal brace on the bottom part, high, large cable inputs: M32. The HDC-casing are thanks to a special die-cast alloy and a multi-layered surface sealing perfectly protected. The sophisticated locking system is consistently made of stainless steel. This means longevity, corrosion resistance and impact resistance. The locking mechanism of the housing offers security with the system. Our unique, patented bracket system, the latch secure grip and protects against accidental opening. By the laser marking is an identification at a glance. So that you can assign to each product immediately, is a permanent identification directly on the housing lasered. Weidmüller RockStar ® enclosure IP65/NEMA type 4X are your first choice when it comes to industrial housing in the protection class IP65.
