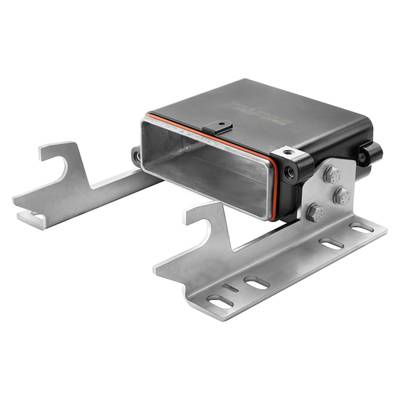

Weidmüller HDC IP68 HP 24B AS S 1079920000 Socket enclosure 1 pc(s) Piece
Packaging type
Piece
Product type
Socket enclosure
Case material
Aluminium, die cast
Type
HDC IP68 HP 24B AS S
Series
RockStar® HDC IP68
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Connector housing
- HDC IP68 HP 24B AS S
Technical specifications
- EMC housing: Yes
- Surface: Powder coating
- Material Locking element: Stainless steel
- , stainless steel Design: Standard
- size: 8
- Handle design: Screw cap
- upper part/lower part/cover: Lower part
- Mounting dimensions Width: 208 mm
- Mounting dimensions Height: 170 mm
- Seal: Silicone rubber
- Material Mounting brackets: Stainless steel, stainless steel
- Packaging type
Piece
- Type
HDC IP68 HP 24B AS S
- Product type
Socket enclosure
- Series
RockStar® HDC IP68
- Manufacturer part #
1079920000
- Features
+ screw lock
- Case material
Aluminium, die cast
- Factory colour
Black
- Weight
1834.4 g
- Content
1 pc(s)
- Width
84.5 mm
- Height
260 mm
- Length
228 mm
IP68
IP69K
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 199499 Weidmüller HDC IP68 HP 24B AS S 1079920000 Socket enclosure 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 199499 Weidmüller HDC IP68 HP 24B AS S 1079920000 Socket enclosure 1 pc(s) Piece
Description
Connector housing. HDC-casing, size: 8, protection class IP68, base, screw cap, Standard. The Rock Star ® high-power housing are made of a high-strength aluminum casting and offer by a continuous optimization a perfect protection under adverse environmental conditions. Through the multi-piece housing, the user has the option to view work processes up to the last operation.
