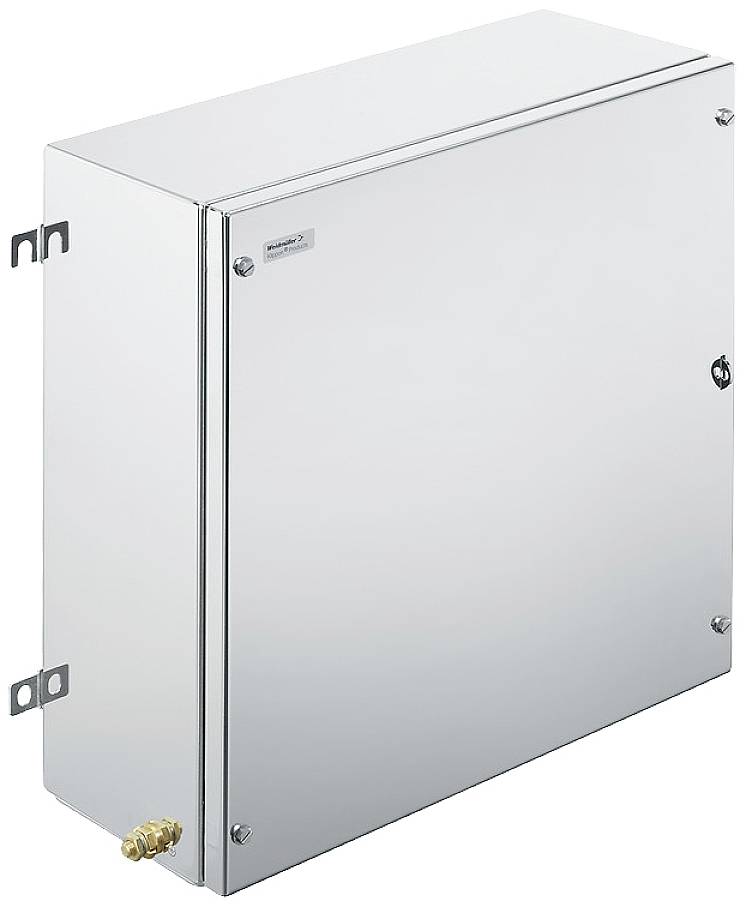

Weidmüller KTB MH 484815 S2E4 Wall-mount enclosure 480 x 480 x 150 Metal 1 pc(s) Piece
Packaging type
Piece
Product type
Wall-mount enclosure
Material
Metal
Width
480 mm
Height
480 mm
EAN:
Part number:
Item no:
Highlights & Details
Our service for you
Technical specifications
- Ex metal housing, electropolished, flange plate: Yes, bottom, top, left, right, 4 hinges and M6 hexagonal slotted screws SW1
- Packaging type
Piece
- Product type
Wall-mount enclosure
- Features
Explosion-proof
- Material
Metal
- Width
480 mm
- Height
480 mm
- Content
1 pc(s)
- Type
KTB MH 484815 S2E4
- Dim
(W x H x D) 480 x 480 x 150 mm
- RoHS-compliant
Yes
- Manufacturer part #
1195140001
- Depth
150 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1911865 Weidmüller KTB MH 484815 S2E4 Wall-mount enclosure 480 x 480 x 150 Metal 1 pc(s) Piece
Description
The housing is suitable for use in industrial standard applications, in the transport sector and in hazardous areas, as it after the current ex-richtlinien is authorised. The mounting holes are located outside the sealing area. A direct wall mounting with mounting holes or by mounting base is possible.
This text is machine translated.
This text is machine translated.
What kind of Junction box are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
