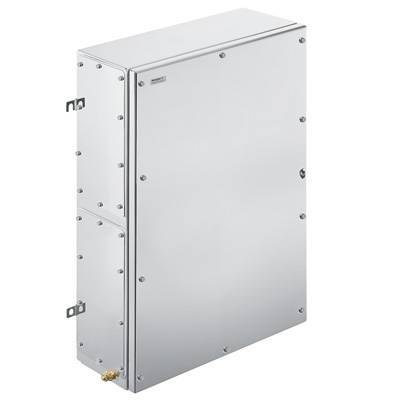

Weidmüller KTB MH 765020 S4E1 Fitting bracket 508 x 762 x 200 Stainless steel Silver 1 pc(s) Piece
Packaging type
Piece
Product type
Fitting bracket
Material
Stainless steel
IP rating
IP66
IP67
Width
508 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Cases & Enclosures
- KTB MH 765020 S4 E1
- This text is machine translated.
Technical specifications
- Mounting dimensions Width: 534 mm
- Mounting dimensions Height: 508 mm
- Operating temperature, max.: +135 °C
- Operating temperature, min.: -60 °C
- Cover mounting: 4 hinges and M6 hexagonal slotted screws SW10
- Sealing material: Silicone
- Torque Lid screws: 2.5 Nm
- Mounting mounting: 4.6 or 9 stud bolts M6 Internal thread
- Mounting instructions: Mounting rail / mounting plate
- Grounding housing Internal: Welded M6 stainless steel earth stud in the lower part of the housing and cover
- Flange plates: Bottom
- Case fixing: 4 welded mounting feet with 11 mm hole size (2 slot and 2 circular mounting feet)
- Material thickness: 1.5 mm
- Material thickness Cover: 1.5 mm
- Material thickness Flange: 3 mm
- Standards: DIN EN 62208 - Empty housing Standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
- Surface: Electropolished
- Opening angle Cover: 130 °
- Key width 1: 10 mm
- Access opening Width: 449 mm
- Access opening Height: 709 mm
- Packaging type
Piece
- Product type
Fitting bracket
- Features
with threaded stud
- Material
Stainless steel
IP66
IP67
- Factory colour
Silver
- Width
508 mm
- Height
762 mm
- Weight
18.12 g
- Standards
International approvals
- Content
1 pc(s)
- Type
KTB MH 765020 S4E1
- Dim
(W x H x D) 508 x 762 x 200 mm
- RoHS-compliant
Yes
- Manufacturer part #
1195460000
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 201437 Weidmüller KTB MH 765020 S4E1 Fitting bracket 508 x 762 x 200 Stainless steel Silver 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 201437 Weidmüller KTB MH 765020 S4E1 Fitting bracket 508 x 762 x 200 Stainless steel Silver 1 pc(s) Piece
Description
Tool-free removable lid. With Earthing bolts in the housing cover and base. Mounting feet welded.
This text is machine translated.
This text is machine translated.
Scope of delivery
- With silicone seal.
