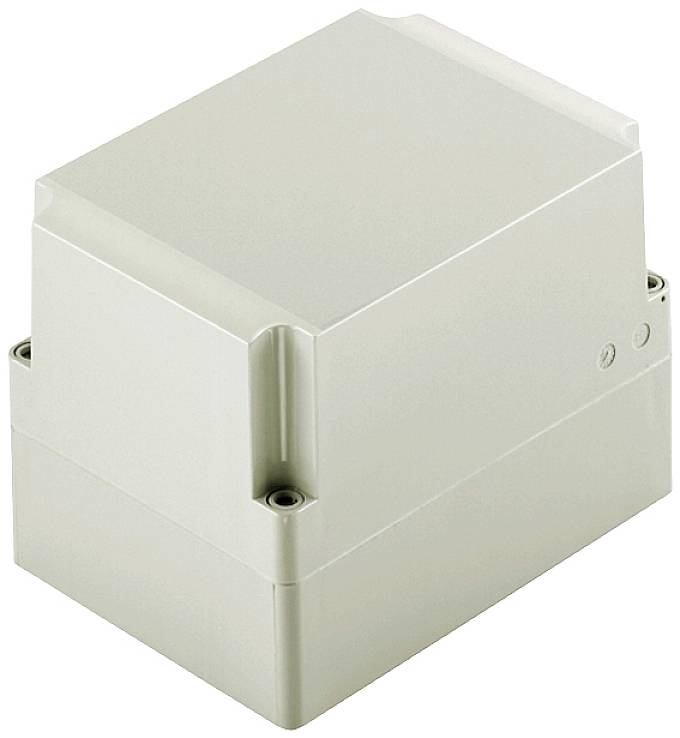

Weidmüller MPC 12/17/15 7035 Casing 175 x 125 x 150 Polycarbonate (PC) Light grey 1 pc(s) Piece
Packaging type
Piece
Product type
Casing
Material
Polycarbonate (PC)
IP rating
IP66
IP67
Width
175 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Operating temperature, max.: +130 °C
- Operating temperature, min.: -50 °C
- Lid fixing: 4 Polyamide cross-head screws
- Sealing material: Polyurethane
- Torque Lid screws: 0.8 Nm
- Mounting mounting: By self-tapping screws
- Housing fixing: Holes 4.5 mm
- Packaging type
Piece
- Product type
Casing
- Features
self-cutting
- Material
Polycarbonate (PC)
IP66
IP67
- Factory colour
Light grey
- Width
175 mm
- Height
125 mm
- Dimensions
175 x 125 x 150 mm
- Weight
600 g
- Content
1 pc(s)
- Type
MPC 12/17/15 7035
- Dim
(W x H x D) 175 x 125 x 150 mm
- RoHS-compliant
Yes
- Manufacturer part #
9535350000
- Depth
150 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1917107 Weidmüller MPC 12/17/15 7035 Casing 175 x 125 x 150 Polycarbonate (PC) Light grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1917107 Weidmüller MPC 12/17/15 7035 Casing 175 x 125 x 150 Polycarbonate (PC) Light grey 1 pc(s) Piece
Description
MPC (polycarbonate enclosure), empty housing, Height: 125mm, Width:175mm, Depth: 150 mm, material: polycarbonate, light gray
This text is machine translated.
This text is machine translated.
What kind of Junction box are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
