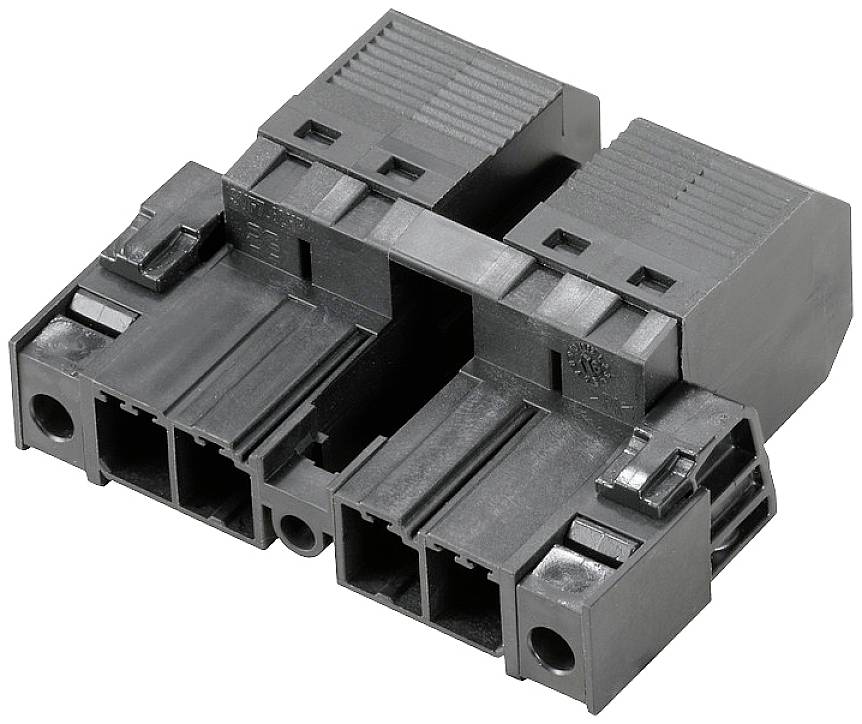

Image similar
Weidmüller Pin housing cable Total number of pins 18 Contact spacing: 5.08 mm 1645390000 18 pc(s)
Product type
Pin housing cable
Connector type
Plug
No. of rows
1
CS
5.08 mm
Total number of pins
18
EAN:
Part number:
Item no:
Highlights & Details
- Content: 18 pc(s)
- No. of rows: 1
- Total number of pins: 18
Our service for you
Technical specifications
- Series: BL/SL 5.08
- Connection type: Field connection
- Forward resistance:< 5mΩ
- Insulation resistance:> 108 Ω
- Clamping range: 0.13 mm² - 3.31 mm²
- Number of poles: 1
- mating cycles: 25
- insertion force/pole, max.: 4 N
- pulling force/pole, max.: 3 N
- Bearing temperature: -25 °C - +55 °C
- Temperature range Mounting: -25 °C - +100 °C
- Tightening torque: 0.4 Nm - 0.5 Nm
- Clamp screw: M 2.5
- Screwdriver blade: 0.6 x 3.5
- Creepage current strength>: 200
- Flammability class: V-0
- Layer construction - Plug contact: 4-8 µm Sn fire tin-plated
- Rated surge voltage: 4 kV
- Overvoltage category: III
- Connectable cable type: Round cable
- Product type
Pin housing cable
- Connector type
Plug
- No. of rows
1
- Connector system
wire-to-board
- CS
5.08 mm
- Pins per row
18
- Total number of pins
18
- Nominal current
21.5 A
- Nominal current - rounded value
21.5 A
- Content
18 pc(s)
- AWG max.
12
- AWG (min.)
26
- Stripping length (max.)
7 mm
- Connection
Screws
Plug
- Connection angle
180°
- Case material
Plastic
- Manufacturer part #
1645390000
- Factory colour
Black
- Insulation material
PBT
- Contact material
CuSn
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
400 V
- Height
15.2 mm
- Depth
22.3 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- RoHS-compliant
Yes
IP20
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SLS 5.08/18/180B SN BK BX
- UKCA
not relevant
