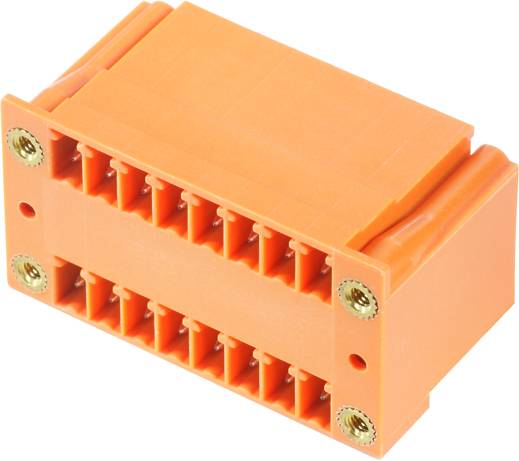

Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1973310000 50 pc(s)
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
2
Series
BC/SC
CS
3.81 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 2
- Total number of pins: 14
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, horizontal mount
- No. of rows
2
- Connector system
wire-to-board
- Series
BC/SC
- Features
+ screw lock
2-tier
- CS
3.81 mm
- Pins per row
7
- Total number of pins
14
- Width
37.06 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
50 pc(s)
- Dim
(L x W x H) 21.90 x 37.06 x 25.90 mm
- Connection
Print
- Case material
PA GF
- Manufacturer part #
1973310000
- Factory colour
Orange
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Nominal voltage
300 V
- Height
25.90 mm
- Length
21.90 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
SCD 3.81/14/90F 3.2SN OR BX
Documents & Downloads
Datasheet
Datasheet 390050 Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1973310000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 390050 Weidmüller Pin housing PCB BC/SC Total number of pins 14 Contact spacing: 3.81 mm 1973310000 50 pc(s)
Description
PCB connector. Multi-pin connector, Flange, solder, 3.81 mm, 14 pins, 90°, solder pin length: 3.2 mm, tinned, orange, Box. Double level terminal strip SCD for wave soldering process. Use of two interfaces on the same base surface and in one operation. Outlet direction: 90° (horizontal). Connections in one level and for a front panel conclusive access. Space for labels, and coding. Packaging in a cardboard box. The Weidmüller connectors in the grid 3.81 mm (0.15 inch) are layout - compatible with common connectors and offer space for printing and coding. 320 V (IEC) / 300 V (UL), 17.5 A (IEC) / 10 A (UL).
