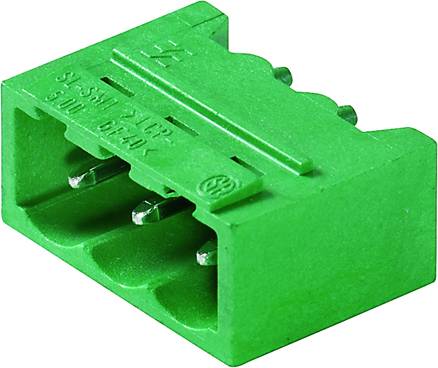

Weidmüller Pin housing PCB BL/SL 5.00 Total number of pins 2 Contact spacing: 5 mm 1840120000 100 pc(s)
Product type
Pin housing PCB
Connector type
Plug, right angle
No. of rows
1
Series
BL/SL 5.00
CS
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- Content: 100 pc(s)
- No. of rows: 1
- Total number of pins: 2
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, right angle
- No. of rows
1
- Connector system
wire-to-board
- Series
BL/SL 5.00
- CS
5 mm
- Pins per row
2
- Total number of pins
2
- Width
12.0 mm
- Pin shape
Rectangular
- Nominal current
27.50 A
- Nominal current - rounded value
27.5 A
- Content
100 pc(s)
- Dim
(L x W x H) 13.2 x 12.0 x 11.7 mm
- Connection
Print
- Case material
LCP GF
- Manufacturer part #
1840120000
- Factory colour
Black
- Industrial packaging
Yes
- Insulation material
LCP GF
- Contact material
Copper alloy
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- Nominal voltage
400 V
- Height
11.7 mm
- Length
13.2 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+100 °C
- Min. temperature
-50 °C
- Type
SL-SMT 5.00/02/90G 3.2SN BK BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 359727 Weidmüller Pin housing PCB BL/SL 5.00 Total number of pins 2 Contact spacing: 5 mm 1840120000 100 pc(s)
User & Safety Instructions
User & Safety Instructions 359727 Weidmüller Pin housing PCB BL/SL 5.00 Total number of pins 2 Contact spacing: 5 mm 1840120000 100 pc(s)
Description
PCB connector. Multi-pin connector on the side of closed, reflow solder connection, 5.00 mm, number of poles: 2, 90°, solder pin length: 3.2 mm, tinned, black, Box. High-temperature resistant Pin header with packaging in a box or tape. In the tape with 1.5 mm solder pin optimized for automatic placement. Solder pin 3.2 mm for reflow and wave soldering jobs. The strips are labelled or barcode. 400 V (IEC) / 300 V (UL), 19 A (IEC) / 15 A (UL),.
This text is machine translated.
This text is machine translated.
