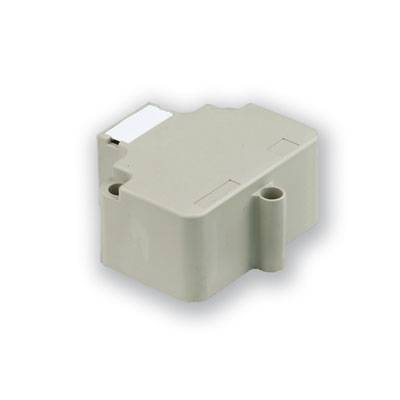

Weidmüller SAI-4/6/8-MH LEER 1783460000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s)
Product type
Sensor & actuator box (passive)
Type
SAI-4/6/8-MH LEER
Trunk line
No
Status indicator
No LED
Connection
Connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Distribution material: Plastic
- Contact material: CuZn
- Contact carrier material: PBT (UL 94 V0)
- Distribution outlet: Hood version
- External conductor diameter: 6 mm - 12 mm
- Fitting: M20
- Nominal voltage: 10 V - 30 V
- Towing chain suitability: No.
- Product type
Sensor & actuator box (passive)
- Type
SAI-4/6/8-MH LEER
- Trunk line
No
- Status indicator
No LED
- Connection
Connector
- Width
59.2 mm
- Length
57 mm
IP68
- Max. power rating per slot
4 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector type (distribution boxes)
Screw
- Case material
Plastic
- Total no. of pins
4, 6, 8
- Weight
43 g
- Manufacturer part #
1783460000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
4
6
8
- Height
32.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203486 Weidmüller SAI-4/6/8-MH LEER 1783460000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s)
User & Safety Instructions
User & Safety Instructions 203486 Weidmüller SAI-4/6/8-MH LEER 1783460000 Sensor & actuator box (passive) Connector cap w/o feed 1 pc(s)
Description
Sensor/actuator passive splitter. M12 splitter are offered in all possible designs. The 4.6 or 8 M12 slots are 4 or 5-pin. The Collective outlet is either in the form of fixed cable version, hood variants for self or connect with M23. There are also some special versions. There are 1 to 1 distributor for the free choice of the connections or distributor for the Ex zone 1.
