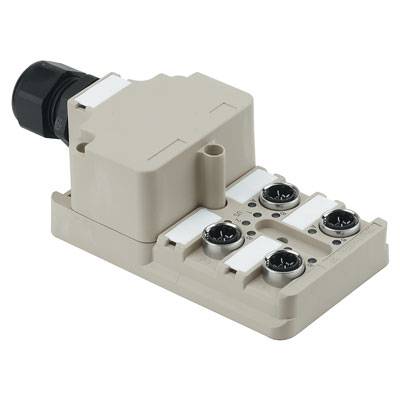

Weidmüller SAI-4-M 4P IDC 1766780000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
4
No. of splitters
4-way
Type
SAI-4-M 4P IDC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Sensor/Actuator Passive Splitter
- SAI-4-M4P IDC
Technical specifications
- Distributor material: Plastic
- cover sealing material: Viton
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact support material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M12
- LED Color for operating function: Green
- LED Color for I/O Function: Yellow
- distribution outlet: Hood version
- external diameter: 1.2 mm - 1.6 mm
- Test voltage: 1 kV
- Nominal voltage: 10 V - 30 V
- available: Potential separation Yes
- Towing chain capability: No.
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
4
- Type
SAI-4-M 4P IDC
- Trunk line
No
- No. of splitters
4-way
- Status indicator
LED
- Connection
Screws
- Width
60 mm
- Length
102 mm
IP67
- Max. power rating per slot
4 A
- Total current (direct supply)
10 A
- Max. temperature
+90 °C
- Min. temperature
-20 °C
- Connector cross section (max.)
1.5 mm²
- Connector cross section (min.)
0.08 mm²
- Connector type (distribution boxes)
Screw
- Case material
Polyester
- Total no. of pins
4
- Weight
210 g
- Manufacturer part #
1766780000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
4
- Height
41.5 mm
- Power rating (total)
10 A
- Power rating per I/O
2 A
- Cross-section (sensor/actuator wiring)
1.5 mm²
60
41.5 mm
Grey
102 m
Plastic
-20-90 °C
None
None
Gold
IP67
TRUE
2
PBT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 203440 Weidmüller SAI-4-M 4P IDC 1766780000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 203440 Weidmüller SAI-4-M 4P IDC 1766780000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Description
Sensor/actuator passive splitter. SAI-passive, IDC, M12, hood version, yes. Compact IDC connection shortens production, commissioning and maintenance work. Knurled nut made of metal-robust, secure handling with minimal effort. The dimensions of the IDC distributor correspond to those of the standard SAI distributor. They are compatible with them. 3-pin design with 1 I/O signal per slot and 4-pin design with 2 each of I/O signals per slot, individual assembly the sensor/actuator cables on site, fast and secure connection by connecting element IDC, protection class IP67.
