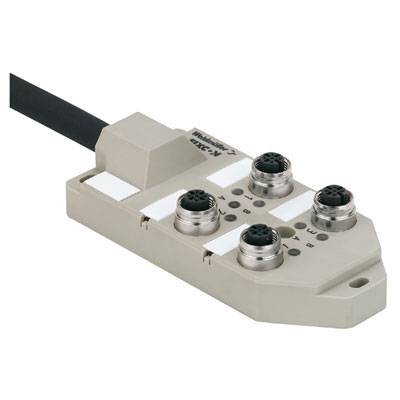

Weidmüller SAI-4-SH 5P FC 1859130000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of splitters
4-way
Type
SAI-4-SH 5P FC
Trunk line
No
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Sensor/Actuator Passive Splitter
- SAI-4-SH5P FC
Technical specifications
- Distribution material: Plastic
- contact material: CuZn
- threaded bushes: CuZn, nickel-plated
- contact carrier material: PBT (UL 94 V0)
- Insulation resistance: 109 Ω
- Connection thread: M12
- LED Color for operating function: Green
- LED Color for I/O Function: Yellow
- insulation stripping length: 100 mm
- Distribution outlet: With M23 outlet, 19-pin
- Test voltage: 1 kV
- Nominal voltage: 10 V - 30 V
- Potential separation available: No.
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- Type
SAI-4-SH 5P FC
- Trunk line
No
- No. of splitters
4-way
- Status indicator
LED
- Connection
Open end cable
- Width
54 mm
IP67
- Max. power rating per slot
4 A
- Total current (direct supply)
9 A
- Max. temperature
+80 °C
- Min. temperature
-25 °C
- Connector type (distribution boxes)
M23 connector (upright)
- Case material
PA GF
- Total no. of pins
4
- Weight
201 g
- Manufacturer part #
1859130000
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
4
- Height
34.3 mm
- Power rating (total)
9 A
- Power rating per I/O
2 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 204305 Weidmüller SAI-4-SH 5P FC 1859130000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 204305 Weidmüller SAI-4-SH 5P FC 1859130000 Sensor & actuator box (passive) M12 splitter + steel thread 1 pc(s) Piece
Description
Sensor/actuator passive splitter. Push-pull, M12, with M23 outlet, yes. While in the standard M12 system consuming the rotary sleeve screwed and through the vibration protection disabled, push-pull with a click, as the well-known water hose connection systems in the garden area. The audible lock ensures safe and reliable connection as well as a high resistance. The new SAI-push-pull distributor can be used together with M12 connectors as well as with the new push-pull connectors can be used.
