Name: Weidmüller Socket housing cable BL/SL Total number of pins 5 Contact spacing: 5.08 mm 1087280000 48 pc(s)
Brand: Weidmüller
SKU: 288843

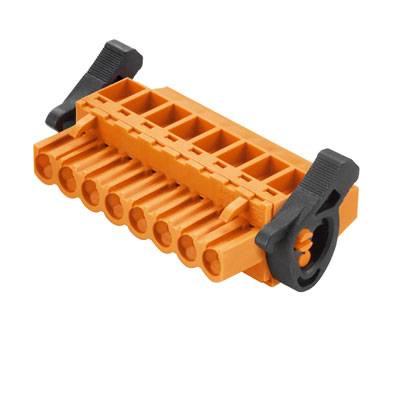

An orange electrical connector with multiple terminals and black levers, used for secure electrical connections.

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

BL/SL

5.08 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCB connector

Content: 48 pc(s)
No. of rows: 1
Total number of pins: 5

Our service for you

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 1

Connector system: wire-to-board

Series: BL/SL

Features: + latch

CS: 5.08 mm

Pins per row: 5

Total number of pins: 5

Width: 35.22 mm

Nominal current: 20 A

Nominal current - rounded value: 20 A

Content: 48 pc(s)

AWG max.: 12

AWG (min.): 30

Stripping length (max.): 7.00 mm

Dim: (L x W x H) 17.70 x 35.22 x 29.50 mm

Connection: Screw terminal
Plug

Case material: PBT

Manufacturer part #: 1087280000

Industrial packaging: Yes

Contact material: Cu-alloy, tin plated

Connector contact surface: Tin plated

Nominal voltage: 300 V

Height: 29.50 mm

Length: 17.70 mm

max. cross section: 4.00 mm²

Min. cross section: 0.20 mm²

RoHS-compliant: Yes

Connector orientation: Parallel (to the PCB)

Type: BLZP 5.08/05/90LR SN OR BX

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connector type

Nominal current - rounded value

Series

Total number of pins

Width

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928280000 100 pc(s)

Item no:375495

Unavailable

Conrad Electronic

Socket, horizontal mount

7.62 mm

35 A

BV/SV

28.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928500000 100 pc(s)

Item no:375519

Unavailable

Conrad Electronic

Socket, horizontal mount

7.62 mm

35 A

BV/SV

30.48 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928610000 100 pc(s)

Item no:375525

Unavailable

Conrad Electronic

Socket, vertical vertical

7.62 mm

42 A

BV/SV

31.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928730000 100 pc(s)

Item no:375532

Unavailable

Conrad Electronic

Socket, vertical vertical

7.62 mm

42 A

BV/SV

31.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1928840000 100 pc(s)

Item no:375539

Unavailable

Conrad Electronic

Socket, vertical vertical

7.62 mm

35 A

BV/SV

31.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1929300000 100 pc(s)

Item no:375546

Unavailable

Conrad Electronic

Socket, horizontal mount

7.62 mm

35 A

BV/SV

28.00 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1929410000 100 pc(s)

Item no:375553

Unavailable

Conrad Electronic

Socket, horizontal mount

7.62 mm

35 A

BV/SV

30.48 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 2 Contact spacing: 7.62 mm 1929520000 100 pc(s)

Item no:375561

Unavailable

Conrad Electronic

Socket, horizontal mount

7.62 mm

35 A

BV/SV

30.48 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 3 Contact spacing: 7.62 mm 1928510000 100 pc(s)

Item no:375520

Unavailable

Conrad Electronic

Socket, horizontal mount

7.62 mm

35 A

BV/SV

38.10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Weidmüller Socket housing PCB BV/SV Total number of pins 3 Contact spacing: 7.62 mm 1928620000 100 pc(s)

Item no:375526

Unavailable

Conrad Electronic

Socket, vertical vertical

7.62 mm

42 A

BV/SV

31.50 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 288843 Weidmüller Socket housing cable BL/SL Total number of pins 5 Contact spacing: 5.08 mm 1087280000 48 pc(s)

User & Safety Instructions

User & Safety Instructions 288843 Weidmüller Socket housing cable BL/SL Total number of pins 5 Contact spacing: 5.08 mm 1087280000 48 pc(s)

Description

PCB connector. Jack plug, 5.08 mm, number of poles: 5, 90°, receptacle, max.: 4 mm², Box. Receptacle with screw and bracket for right-angle (90° or 270°) outgoing wiring. Enough space for label or barcode. Attachment via flange or latch. Comes with a built-in plusminus screw, "Wire Guard" (prevents dead contacts). Factory-packaged with open bracket. 0.2 - 2.5 mm² (IEC) / 26-12 AWG (UL), 400 V (IEC) / 300 V (UL), 15 A (IEC) / 10 A (UL).
