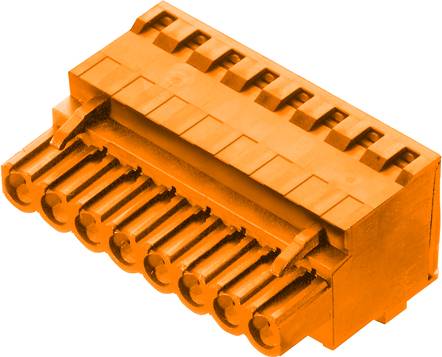

Weidmüller Socket housing cable BL/SL Total number of pins 8 Contact spacing: 5.08 mm 1982760000 42 pc(s)
Product type
Socket housing cable
Connector type
Socket, straight
No. of rows
1
Series
BL/SL
CS
5.08 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- Content: 42 pc(s)
- No. of rows: 1
- Total number of pins: 8
Our service for you
Technical specifications
- Product type
Socket housing cable
- Connector type
Socket, straight
- No. of rows
1
- Connector system
wire-to-board
- Series
BL/SL
- CS
5.08 mm
- Pins per row
8
- Total number of pins
8
- Width
40.64 mm
- Nominal current
18.50 A
- Nominal current - rounded value
18.5 A
- Content
42 pc(s)
- AWG max.
12
- AWG (min.)
26
- Stripping length (max.)
10.00 mm
- Dim
(L x W x H) 20.70 x 40.64 x 26.20 mm
- Connection
Spring-loaded terminal
Plug
- Case material
PBT
- Manufacturer part #
1982760000
- Factory colour
Orange
- Industrial packaging
Yes
- Contact material
Bronze, tin plated
- Connector contact surface
Tin plated
- Nominal voltage
300 V
- Height
26.20 mm
- Length
20.70 mm
- max. cross section
2.50 mm²
- Min. cross section
0.20 mm²
- RoHS-compliant
Yes
- Connector orientation
At an angle (to the PCB)
- Type
BLF 5.08HC/08/270 SN OR BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 390763 Weidmüller Socket housing cable BL/SL Total number of pins 8 Contact spacing: 5.08 mm 1982760000 42 pc(s)
User & Safety Instructions
User & Safety Instructions 390763 Weidmüller Socket housing cable BL/SL Total number of pins 8 Contact spacing: 5.08 mm 1982760000 42 pc(s)
Description
PCB connector. Jack plug, 5.08 mm, number of poles: 8, 270°, push-in spring connection, clamping range, max. width: 3.31 mm², Box. Reliable as the million times proven original and innovative in detail: the BLF 5.08, PUSH-IN-version of the socket strip BLZ 5.08, does not differ only in the connection technology, but is also more compact. The innovative push-in spring-cage connection from weidmüller stands for the simple, tool-free-to-conductor connection of the future. In terms of versatility is in no way inferior to the model but the BLF 5.08:3 proven conductor outlet directions offer the usual design freedom for an application-oriented design. 4 Flange variants including patented latch enable a user-oriented locking concept. In order to achieve the maximum rated data use the connector combination of BLF 5.08 with the SL 5.08 HC.
