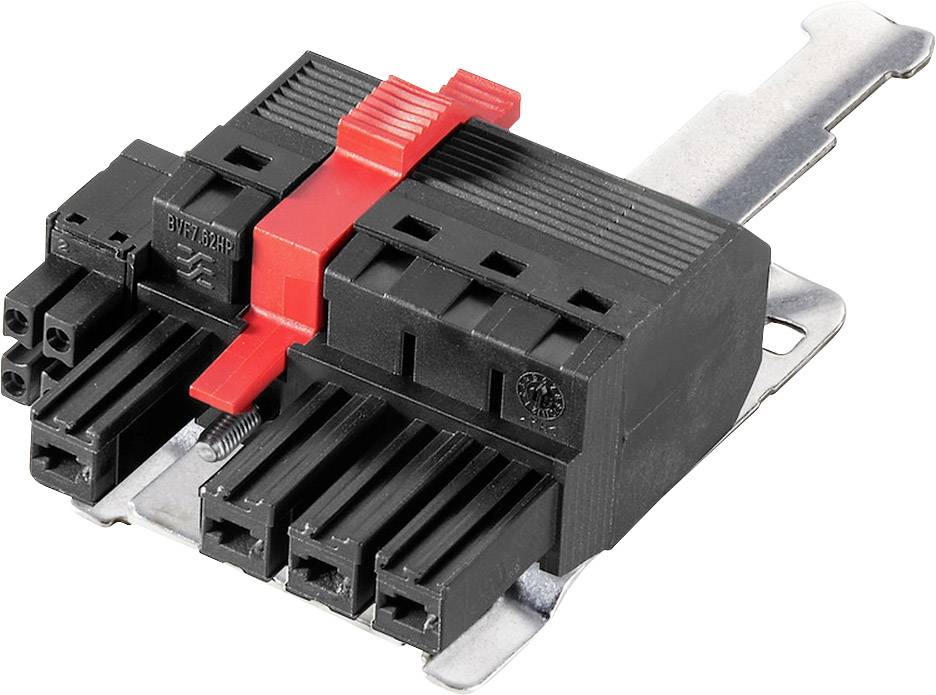

Weidmüller Socket housing cable Total number of pins 4 Contact spacing: 7.62 mm 2681780000 20 pc(s)
Product type
Socket housing cable
Connector type
Socket
CS
7.62 mm
Total number of pins
4
Connector system
wire-to-board
EAN:
Part number:
Item no:
Highlights & Details
- Content: 20 pc(s)
- Total number of pins: 4
Our service for you
Technical specifications
- Series: BV/SV 7.62HP
- Connection type: Field connection
- Forward resistance: 4.5 mΩ
- Insulation resistance:> 108 Ω
- Clamping range: 0.5 mm² - 10 mm²
- Number of poles: 1
- mating cycles: 25
- insertion force/pole, max.: 17 N
- pulling force/pole, max.: 15 N
- tightening torque Screw flange: 0.2 Nm - 0.3
- Rated cross section: 6 mm²
- Storage temperature: -25 °C - +55 °C
- Temperature range Mounting: -25 °C - +125 °C
- Screwdriver blade: 0.6 x 3.5
- Creepage current strength>: 500
- Flammability class: V-0
- Layer construction - Plug contact: 6-8 µm Sn gloss
- Rated surge voltage: 8 kV
- Creepage distance, min.: 12.7 mm
- Air gap, min.: 10.4 mm
- Wire stripping length (signal): 8 mm
- Pitch (signal): 3.81 mm
- Number of rows (signal): 2
- Overvoltage category: II
- Lockable cable type: Round cable
- Product type
Socket housing cable
- Connector type
Socket
- Connector system
wire-to-board
- Features
+ screw lock
- CS
7.62 mm
- Total number of pins
4
- Nominal current
38 A
- Nominal current - rounded value
38 A
- Content
20 pc(s)
- AWG max.
8
- AWG (min.)
24
- Stripping length (max.)
12 mm
- Connection
Push-in connector
- Connection angle
180°
- Case material
Plastic
- Manufacturer part #
2681780000
- Factory colour
Black
- Insulation material
PA GF
- Contact material
Cu-alloy, tin plated
- Connector contact surface
Tin plated
- Nominal voltage
1000 V
- max. cross section
10 mm²
- Min. cross section
0.5 mm²
- RoHS-compliant
Yes
IP20
- Connector orientation
Parallel (to the PCB)
- Max. temperature
+125 °C
- Min. temperature
-50 °C
- Type
BVF 7.62HP/4/180MSF4 BCF/4 SNBKBX SH180
- UKCA
not relevant
