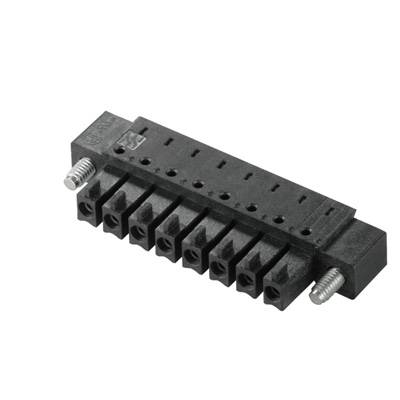

Weidmüller Socket housing PCB BC/SC Total number of pins 5 Contact spacing: 3.81 mm 1975730000 50 pc(s)
Product type
Socket housing PCB
No. of rows
1
Series
BC/SC
CS
3.81 mm
Total number of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 5
Our service for you
Technical specifications
- Product type
Socket housing PCB
- No. of rows
1
- Connector system
wire-to-board
- Series
BC/SC
- Features
+ sleeve
- CS
3.81 mm
- Pins per row
5
- Total number of pins
5
- Width
29.34 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Content
50 pc(s)
- Dim
(L x W x H) 8.20 x 29.34 x 14.50 mm
- Connection
Print
- Case material
LCP GF
- Manufacturer part #
1975730000
- Industrial packaging
Yes
- Contact material
Cu-alloy, tin plated
- Nominal voltage
300 V
- Height
14.50 mm
- Length
8.20 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
BCL-SMT 3.81/05/90F 1.5SN BK
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 390214 Weidmüller Socket housing PCB BC/SC Total number of pins 5 Contact spacing: 3.81 mm 1975730000 50 pc(s)
User & Safety Instructions
User & Safety Instructions 390214 Weidmüller Socket housing PCB BC/SC Total number of pins 5 Contact spacing: 3.81 mm 1975730000 50 pc(s)
Description
PCB connector. Socket strip, Flange, reflow solder connection, 3.81 mm, number of poles: 5, 90°, solder pin length: 1.5 mm, tinned, black, Box. The inverted socket strip BCL-SMT PCB brings three essential benefits: The BCL-SMT provides for finger-safety on the board is also suitable for leading voltage outputs, extends the scope of the board-to-board connection of assemblies, reflow-enabled and enables the seamless integration into the automatic Mounting and de-soldering process. Two outgoing directions offer freedom for different layout variants: 180° vertical, 90° horizontal 2 housing variants of the BCL-SMT are available: without flange. With inverse + solder sleeve ("LFI", with nut). Attachment to the Pcb without additional screw connection. Fixing for SCZ FI with screw. The Weidmüller connectors in the grid 3.81 mm (0.15 inch) are layout - compatible with common connectors and offer space for printing and barcode. 320 V (IEC) / 300 V (UL), 17.5 A (IEC) / 10 A (UL).
