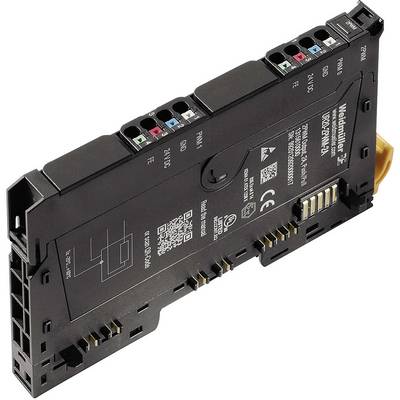

Weidmüller UR20-2PWM-2A 1315610000 PLC add-on module 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 319.00 / piece)
€ 319.00
incl. VAT
14-day return policy included
Technical specifications
- Actuators connection: Push-pull/high side (parameterizable)
- Product type
PLC add-on module
- Operating voltage
24 V DC
- Height
120 mm
- Length
76 mm
- Width
11.5 mm
IP20
- Dim
(L x W x H) 76 x 11.5 x 120 mm
- Manufacturer part #
1315610000
- Type
UR20-2PWM-2A
- Type
2.0 A output
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Weight
91 g
- No. of outputs (max.)
2
- No. of digital outputs
2
- Depth
76 mm
- Inputs / outputs
2 digital outputs
11.5
120 mm
76 mm
FALSE
0
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
TRUE
None
None
IP20
FALSE
FALSE
0
FALSE
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1198383 Weidmüller UR20-2PWM-2A 1315610000 PLC add-on module 24 V DC
User & Safety Instructions
User & Safety Instructions 1198383 Weidmüller UR20-2PWM-2A 1315610000 PLC add-on module 24 V DC
