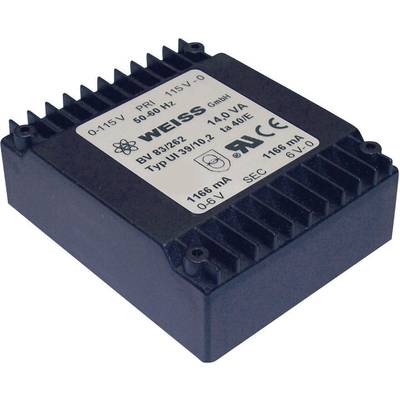

Image similar
1/2
Image similar
Weiss Elektrotechnik 83/264 PCB mount transformer 1 x 230 V 2 x 9 V AC 14 VA 778 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details
UI 39 Flat transformer 14 VA
- 1 x 230 V
- 2 x 9 V AC
- 778 mA
- 14 VA
Technical specifications
- Primary pin assignment: PIN 1-4 / 9-6
- Secondary pin assignment: PIN 12-14 / 19-17
- Output voltage
9 V AC
- Output voltage (number x voltage)
2 x 9 V AC
- Output current
778 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
14 VA
- Width
57 mm
- Height
25 mm
- Length
68 mm
- Type
83/264
- Content
1 pc(s)

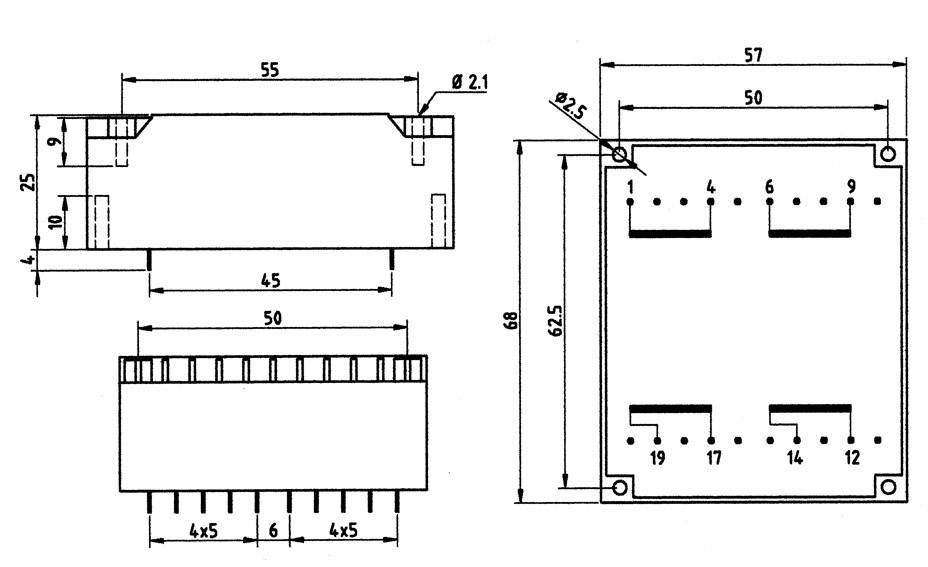

- Dim
(L x W x H) 68 x 57 x 25 mm
- Connection
Soldering
14 VA
- Output voltage
2 x 9 V
- Type
UL 506
- Frequency
50 - 60 Hz
- RoHS-compliant
- Weight
310 g
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 505885 Weiss Elektrotechnik 83/264 PCB mount transformer 1 x 230 V 2 x 9 V AC 14 VA 778 mA
