Name: Weller RTM 015 S MS Soldering tip Chisel-shaped Tip size 1.5 mm Tip length 18 mm Content 1 pc(s)
Brand: Weller
SKU: 2177625
Availability: InStock

A silver and black screwdriver with an ergonomic grip design. The tool looks precision-engineered and appears highly manoeuvrable.

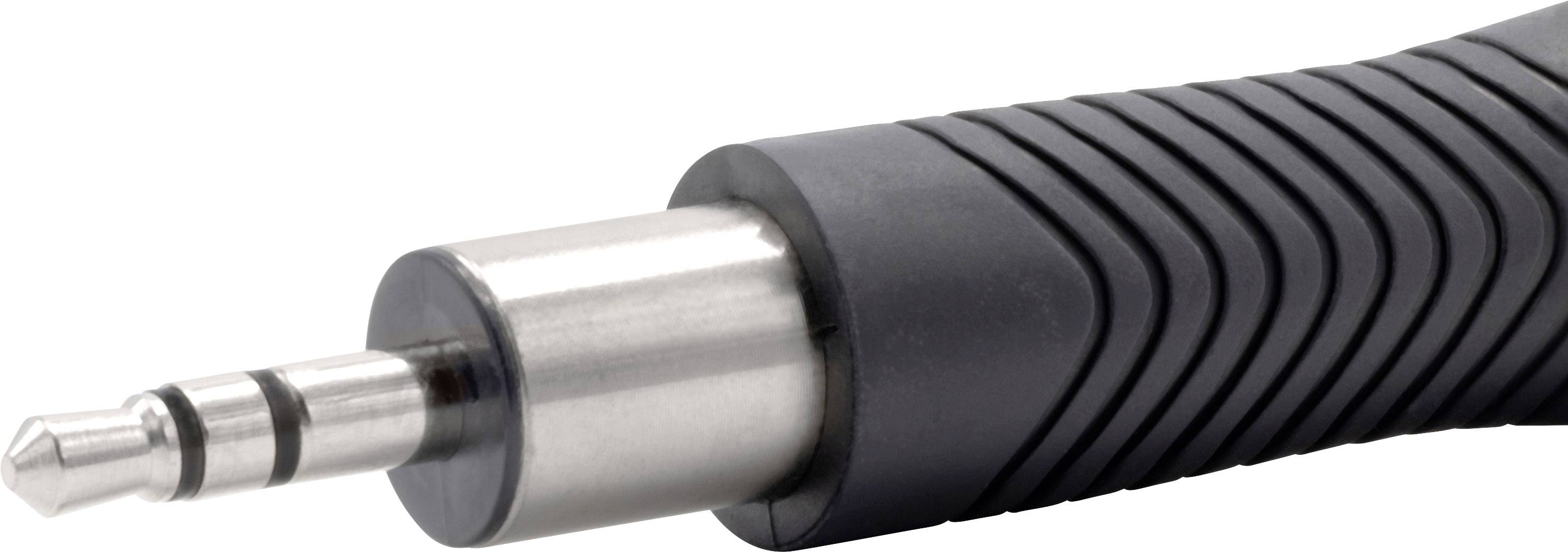

Close-up of a black jack plug, commonly used for audio cables. The metal part of the plug is facing to the left.

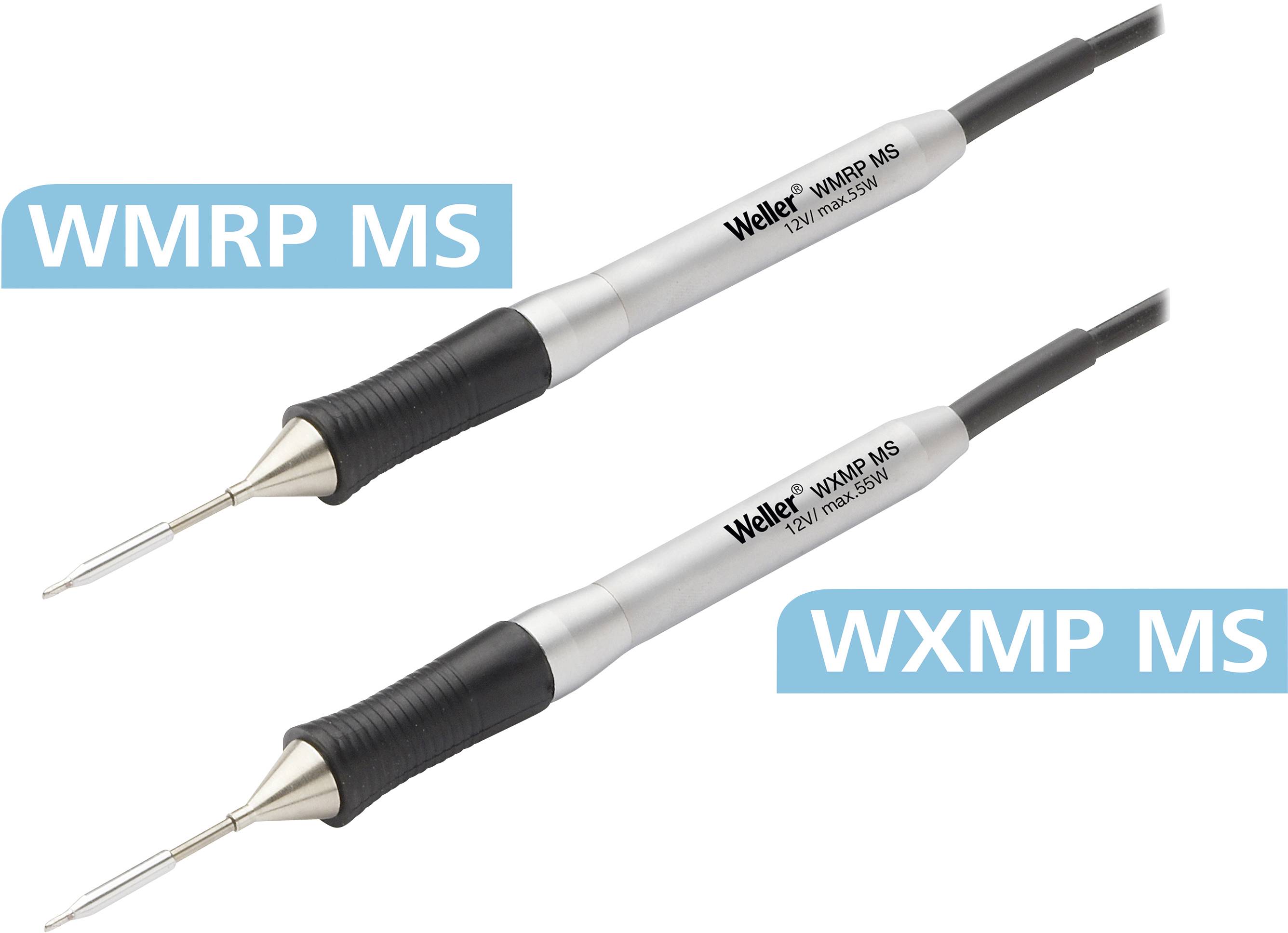

Two Weller soldering iron models, WMRP MS and WXMP MS, with slim, black handle and metal tip, side by side in close-up.

A screwdriver with an ergonomic handle and interchangeable bit, suitable for precision craftwork.

Close-up of a black audio jack plug, typically used for headphone and speaker connections.

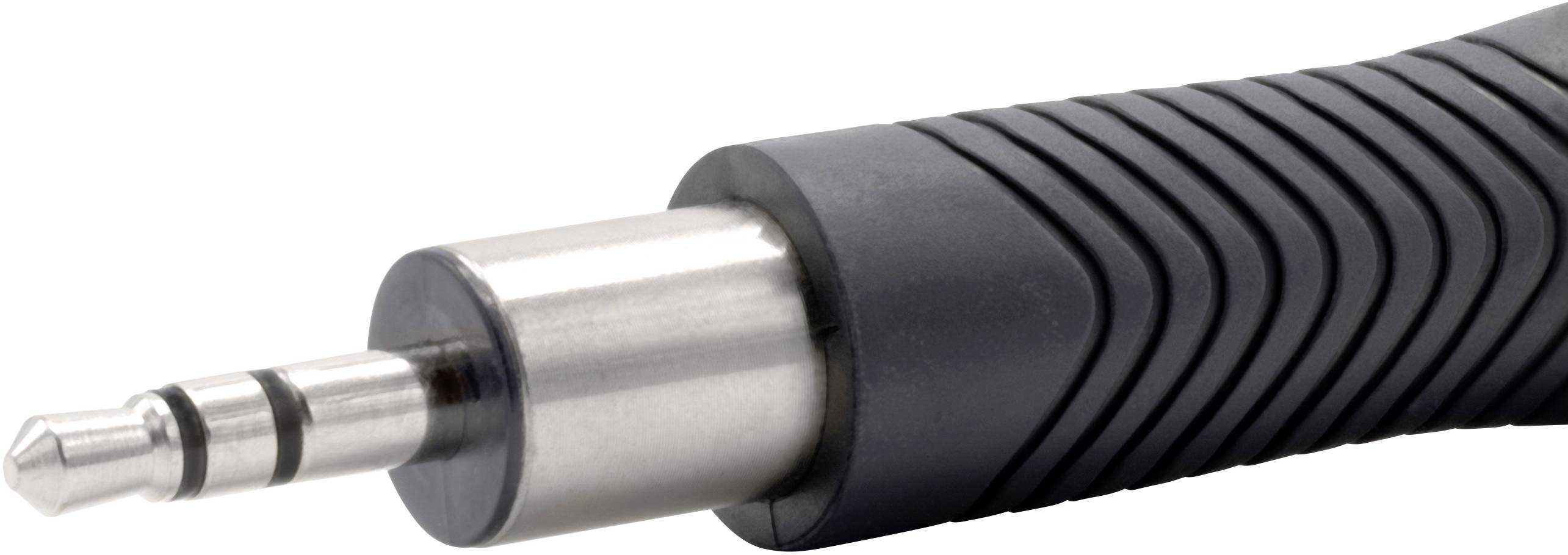

Black, ribbed audio cable plug, 3.5mm jack, showing part of the housing and metal tip.

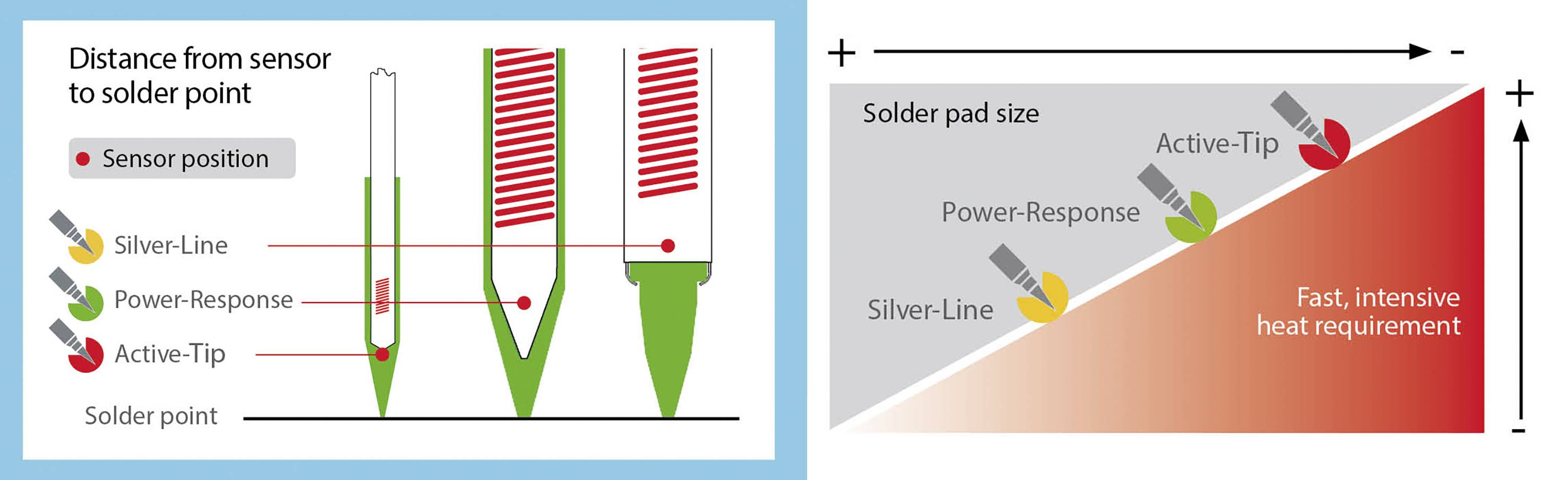

'Diagram shows soldering tips: Silver-Line, Power-Response, Active-Tip. Sensor position in red. Right: Soldering pad size vs. heat requirement.'

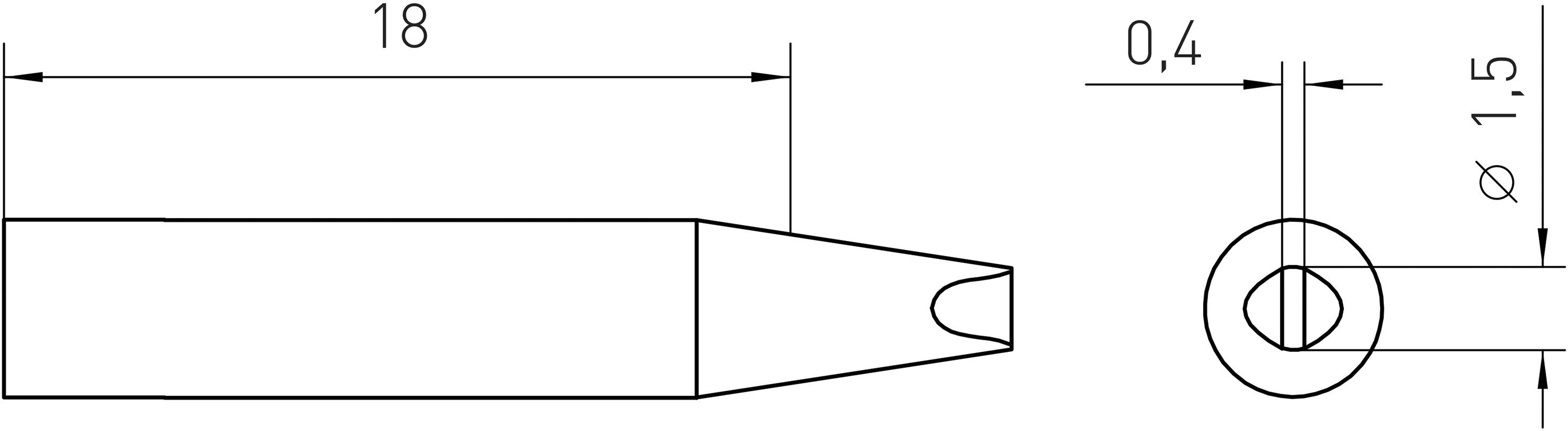

Technical drawing of a cylindrical object with dimensions: Length 18, Diameter 0.4 and 1.5. Top view and side view.

Illustration of a jack plug. On the left is the plug and on the right is the socket. Suitable for audio transmission.

1/9

Image similar

Datasheet (PDF)

Fast track dispatch on Fri, 5 Jun

Online available

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 51.99 / piece)

€51.99

incl. VAT

Report legal concerns

Weller RT Micro soldering tip, chisel 1.5 mm x 0.4 mm, MIL-SPEC

Handles all standard applications. A tool for all soldering needs.
Reduces the risk of damage to sensitive microcomponents and workpieces. No rework, lower operating costs.
Fast heating and reaction time, sensor close to the soldering spot, perfect heat transfer. No downtime, continuous workflow, excellent results.
Motion sensor for activation, operation and setup information stored in the tool. Energy-saving, longer tip life, flexibility for the user thanks to use at the bank/station.
Only soldering tip on the market with tool-free tip change. 20% faster tip change than comparable tools.
One station for all active tips and tools. WX system meets all manual soldering requirements and is the only ESD-safe soldering station on the market, including control panel.

Chisel-shaped : 1.5 x 0.4

Tip shape: Chisel-shaped

Type: RTM 015 S MS

Compatible with (details): WXMP MS | | WMRP MS

Compatible with: Weller

Tip length: 18 mm

Tip size: 1.5 mm

Product type: Soldering tip

Datasheet

Datasheet 2177625 Weller RTM 015 S MS Soldering tip Chisel-shaped Tip size 1.5 mm Tip length 18 mm Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2177625 Weller RTM 015 S MS Soldering tip Chisel-shaped Tip size 1.5 mm Tip length 18 mm Content 1 pc(s)

Information

Information 2177625 Weller RTM 015 S MS Soldering tip Chisel-shaped Tip size 1.5 mm Tip length 18 mm Content 1 pc(s)

Powerful active soldering tip RT Micro MIL-SPEC for micro and standard components covers a wide range of applications.
