Name: Weller WR 3000M M.HAP200/DXV80/WP80 230V F/G Soldering station 400 W 50 - 550 °C
Brand: Weller
SKU: 3762016

Unavailable

Sales and shipping:

Technical specifications

Dimensions L x W x H 280.0 x 240.0 x 103.0mm
Number of channels: 3
Desoldering: Yes
ESD-safe: Yes
Flow rate (l / min): 18 l / min
Noise level (distance 1 m) dB(A): 0.7 bar
Hot air (picto): Yes
IPC-compliant: (Tip to Ground) correspondents to IPC-J-001
Power 360 W (400 W)
Soldering: Yes
Maximum hot air flow rate l/min (depending on tool): 15 l/min.
Potential balancing socket: Via 3.5mm switch jack socket on the back of the device (hard earthed)
Voltage: 230V
Tip type WT
Temperature range °C 50 - 550 °C
Temperature accuracy °C: ± 9°C.
Temperature stability °C: ± 2°C.
USB: Yes

Documents & Downloads

User & Safety Instructions 3762016 Weller WR 3000M M.HAP200/DXV80/WP80 230V F/G Soldering station 400 W 50 - 550 °C

3-channel rework station set, 360 W (400 W) for vertical working.

This text is machine translated.

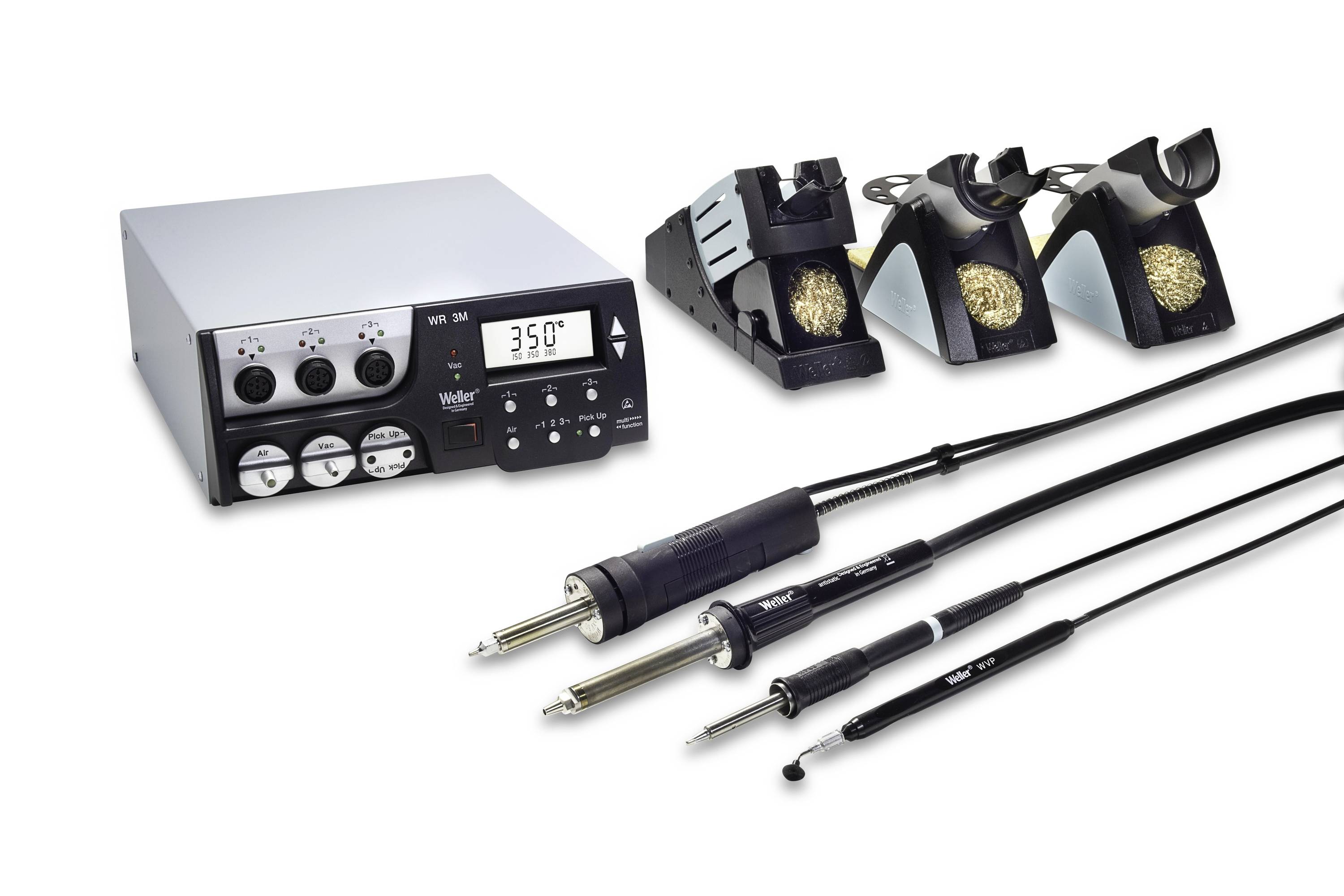

3-channel power supply unit WR 3M with soldering iron WP 80, desoldering iron DXV 80 and hot-air soldering iron HAP 200
Large all-rounder set for all repair tasks
Desoldering iron DXV 80 for vertical work
Simultaneous operation of hot air and desoldering is possible

3-channel rework station set, 360 W (400 W) for vertical working.

This text is machine translated.

3-channel power supply unit WR 3M with soldering iron WP 80, desoldering iron DXV 80 and hot-air soldering iron HAP 200
Large all-rounder set for all repair tasks
Desoldering iron DXV 80 for vertical work
Simultaneous operation of hot air and desoldering is possible
