Name: Weller WT1010M mit WMTP MS+RTM 006 S MS+RTM 022 S MS+RTM 020 G MS+T0053450299 Soldering kit Digital 40 W 50 - 550 °C + s
Brand: Weller
SKU: 3476912

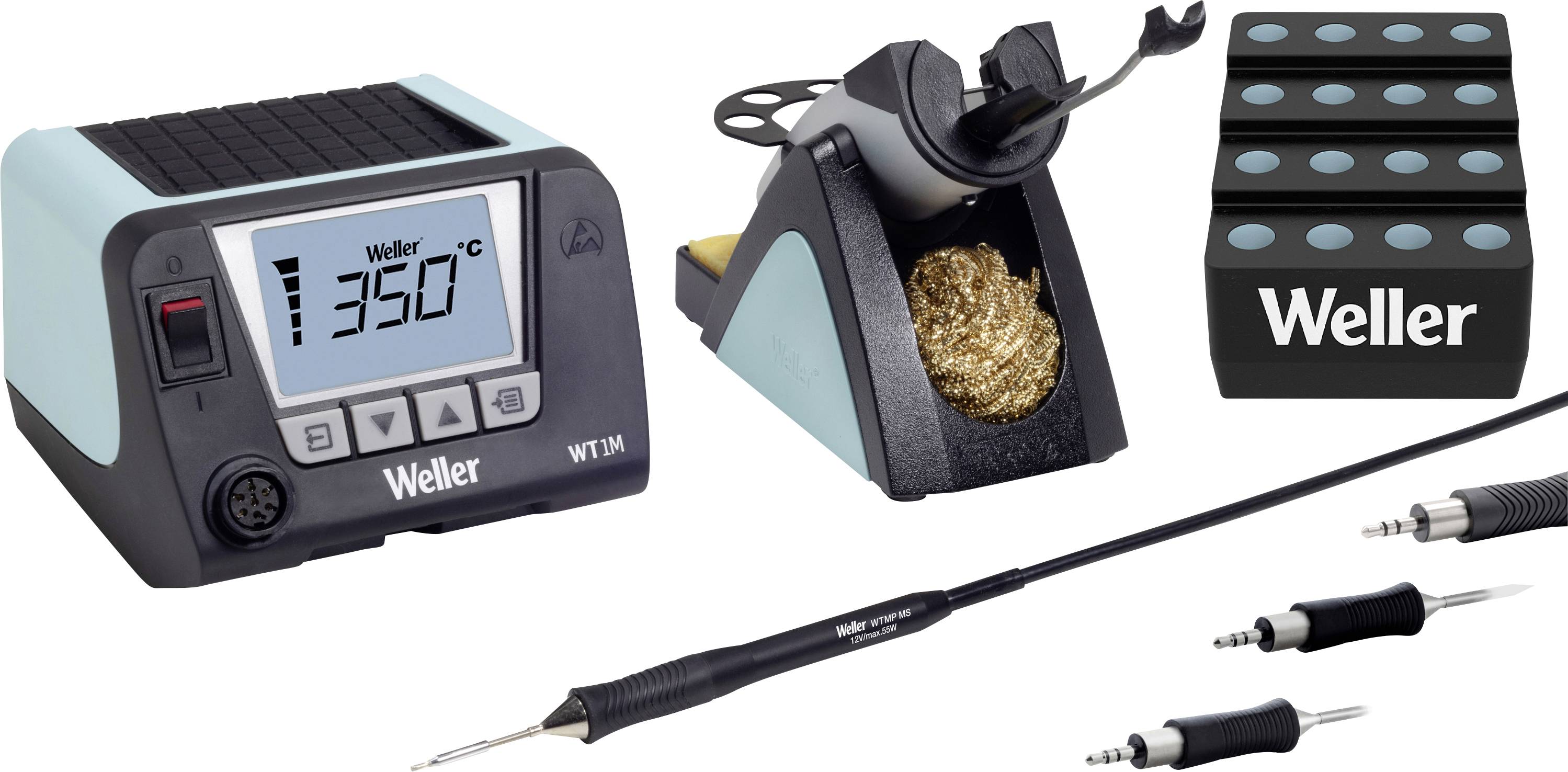

'Soldering station set with digital display showing 350°C, soldering iron, cleaning holder with brass wool, and accessories.'

Close-up of a 3.5 mm jack plug with a black, ribbed grip.

Soldering iron with black handle and silver body, inscription "Weller WP 80".

Soldering iron with a black and grey handle and silver tip, suitable for precise electronic work.

Close-up of an audio jack plug being inserted into a device. The metal connector is surrounded by a ribbed black grip.

A suction grip with a sturdy metal spatula. The design is ergonomic with a non-slip handle for precise handling.

A black audio jack with a knurled grip, close-up. The plug is designed for connections with audio devices.

An ergonomic, black grip adjustable spanner with a metallic, cylindrical handle and a tapered tip.

Close-up of a black audio cable with a silver 3.5mm jack plug, used for headphones or speakers.

Close-up of a black and silver 3.5-mm jack plug with a knurled grip, used for audio connections.

Close-up of a 3.5mm audio jack with a black, ridged grip and silver connection.

A 3.5mm jack plug in close-up, showing the metal tip and the ribbed black grip.

Two soldering tips from Weller, models 'WMRP MS' and 'WXMP MS', with black handles and silver metal parts.

Black and silver 3.5mm jack plug photographed up close, with a ribbed grip section. Suitable for audio connections.

A black rectangular object with three parallel rows of blue-filled holes, with the white 'Weller' lettering below.

A digital soldering station set with display, set to 350°C, and soldering tools with stand and cleaning sponge.

'Two soldering irons: At the top is the WMRP MS and below the WXMP MS from Weller, with a black handle and silver metal shaft.'

Technical drawing of a tip. Length dimension: 23 mm; diameter: 0.4 mm at the tip and 0.6 mm at the shaft.

An ETX screwdriver attachment with a knurled grip and pointed end, for use in precision screw work.

A pneumatic hammer with a ribbed grip and pointed chisel tip; tool for demolition work.<br><br>(Note: While the translation appears very similar to the original, it has been reviewed to ensure it reflects British English usage.)

Weller WT1010M mit WMTP MS+RTM 006 S MS+RTM 022 S MS+RTM 020 G MS+T0053450299 Soldering kit Digital 40 W 50 - 550 °C + s-20

Technical Drawing of a Nozzle with Dimensions: Total Length 18, Diameter 3.6. Front View Shows Aperture Diameter 0.4 and Bore 2.2.

Illustration of a jack plug with a ridged central section and different ends for audio connections.

'Diagram shows distance from sensor to solder point and pad size.' Left: Sensor positions marked in red. Right: Coloured tips indicate heat requirement from silver line to active tip.

Technical drawing of a cylindrical small tube with a 45-degree bevelled end, total length 20, diameter 2 and wall thickness 1.2.

Linear technical drawing of a connector with a ribbed central section and metallic ends, side view.

Weller WT1010M mit WMTP MS+RTM 006 S MS+RTM 022 S MS+RTM 020 G MS+T0053450299 Soldering kit Digital 40 W 50 - 550 °C + s-26

1/27

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Set comprising of WT1010M with WMTP MS soldering set + RTM 006 S MS chisel-tip 0.6X0.4 + RTM 022 S MS chisel-tip 2.2X1.4 + RT Micro soldering tip + soldering tip holder

Weller RT micro soldering tip, chisel 0.6mmx0.4mm, MIL-SPEC
Handles all standard applications. A tool for all soldering needs.
Reduces the risk of damage to sensitive micro components and workpieces. No rework, lower operating costs.
Fast heat-up and response time, sensor close to the solder joint, perfect heat transfer. No downtime, continuous workflow, excellent results.
Motion sensor for activation, operating and setup information stored in the tool. Energy saving, longer life span of the peak, flexibility for the user by the use at the bank/station.
Only soldering tip in the market with tool-free tip change. 20% faster tip change than with comparable tools.
One station for all active tips and tools. WX system meets all the requirements for manual soldering and is the only ESD-safe soldering station, including control panel, on the market.
Weller RT micro soldering tip, chisel 2.2mmx0.4 mm, MIL-SPEC
Fast heating up and response time
Perfect heat transition
Tool-free tip change
20% faster tip change than with comparable tools
Weller RT micro solder tip, solder depot 1.2mmx2.0mm, MIL-SPEC
Handles all standard applications. A tool for all soldering needs.
Reduces the risk of damage to sensitive micro components and workpieces. No rework, lower operating costs.
Fast heat-up and response time, sensor close to the solder joint, perfect heat transfer. No downtime, continuous workflow, excellent results.
Motion sensor for activation, operating and setup information stored in the tool. Energy saving, longer life span of the peak, flexibility for the user by the use at the bank/station.
Only soldering tip in the market with tool-free tip change. 20% faster tip change than with comparable tools.
One station for all active tips and tools. WX system meets all the requirements for manual soldering and is the only ESD-safe soldering station, including control panel, on the market.
Weller soldering tip holder for active RT soldering tip families
Everything at a glance
All soldering tips are placed upright and thus all tip types and sizes are fully visible
Tidied-up - Your workplace is clean and organized with the WCTH soldering tip holder
Up to 16 active Weller RT soldering tips can be stored
Safe: Always place your favorite hot soldering tips in the same order. In this way the workflow remains uniform and safe
Compatible: The soldering tip holder is suitable for all Weller active RT tip families
ESD protection.

Technical specifications

Product type: Soldering kit

Max. power: 40 W

Power supply (LOV): mains-powered

Max. temperature: 550 °C

Display: Digital

Dim: (L x W x H) 150 x 130 x 101 mm

Preheat time: 5 s

Operating voltage: 230 V

Weight: 1900 g

Soldering iron features: + soldering tip
+ tray

Width: 130 mm

Height: 101 mm

Length: 150 mm

Min. temperature: 50 °C

Documents & Downloads

Datasheet

Datasheet 3476912 Weller WT1010M mit WMTP MS+RTM 006 S MS+RTM 022 S MS+RTM 020 G MS+T0053450299 Soldering kit Digital 40 W 50 - 550 °C + s

User & Safety Instructions

User & Safety Instructions 3476912 Weller WT1010M mit WMTP MS+RTM 006 S MS+RTM 022 S MS+RTM 020 G MS+T0053450299 Soldering kit Digital 40 W 50 - 550 °C + s

Information

Information 3476912 Weller WT1010M mit WMTP MS+RTM 006 S MS+RTM 022 S MS+RTM 020 G MS+T0053450299 Soldering kit Digital 40 W 50 - 550 °C + s

Description

WT1010M with WMTP MS soldering kit
Discover the soldering station WT 1M
Your ultimate partner for excellence. With extremely short heating-up and recovery times, it does all the soldering work effortlessly.
No more juggling with tools or loss of performance - only reliable versatility and unsurpassed price-performance
Ratio. Decide for worry-free precision and unstoppable productivity.
Choose a Weller WT soldering station.

Weller RT micro soldering tip, chisel 0.6mmx0.4mm, MIL-SPEC
Powerful active soldering tip RT Micro MIL-SPEC for micro and standard components, covers a wide range of applications.

Weller RT micro soldering tip, chisel 2.2mmx0.4 mm, MIL-SPEC
Powerful active soldering tip RT Micro MIL-SPEC for micro and standard components, covers a wide range of applications.

Weller RT micro solder tip, solder depot 1.2mmx2.0mm, MIL-SPEC
Powerful active soldering tip RT Micro MIL-SPEC for micro and standard components, covers a wide range of applications.

Weller soldering tip holder for active RT soldering tip families
All active Weller RT soldering tips can be stored away easily and securely in the WCTH soldering tip holder. For all RTU, RTP and RTM tips. All soldering tips are placed upright and thus all tip types and sizes are fully visible. Your workstation is clean and organized with the WCTH solder tip holder. Up to 16 active Weller RT soldering tips can be stored. Always store your favorite hot soldering tips in the same order. In this way the workflow remains uniform and safe. The soldering tip holder is suitable for all Weller active RT tip families and is ESD-safe.

This text is machine translated.

Features

WT1010M with WMTP MS soldering kit
1-channel micro-soldering station (95 W)
For micro and standard soldering work. Includes WTMP MS microsoldering pencil
With active (cartridge) top technology
Intuitive operation with clear menu structure
Small space requirement by stacking
Graphic LC-display with background lighting
High performance and functionality
Many tools can be connected
Case lid can be used as storage
Switch-off time, process window interlock function, offset
Can be connected to ZeroSmog solder fume extraction

Scope of delivery

WT1M Supply unit, 230 V, WTMP MS soldering iron, 40 W, 12 V, RTM 013 S MS micro soldering tip, WSR 205 safety rack with stop & go function
1X RTM 006 S MS
1X RTM 022 S MS
1X RTM 020 G MS
1x T0053450299
