Weller WTHA 1 MIT SICHERHEITSABLAGE 230V F/G Hot air soldering 900 W 50 - 600 °C
EAN:
Part number:
Item no:
Technical specifications
- Power consumption 750 (900) W.
- ESD-safe: Yes
- Capacity (l / min): 5 - 60 l / 20°C 5 - 110 l / 300°C.
- Noise level (distance 1 m) dB(A): 56 DBA
- Air inlet/outlet 20 °C / 5 - 60 l/min.
- 300 °C / 5 - 110 L/min
- Mil-Spec: Yes
- Fuse: 230V (mA)/T4A
- Voltage 230 V (50 Hz)
- Temperature range °C 50 - 600 °C
- Temperature accuracy °C: ± 30°C.
- Product type
Hot air soldering
- Max. power
900 W
- Max. temperature
600 °C
- Min. temperature
50 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3762011 Weller WTHA 1 MIT SICHERHEITSABLAGE 230V F/G Hot air soldering 900 W 50 - 600 °C
Description

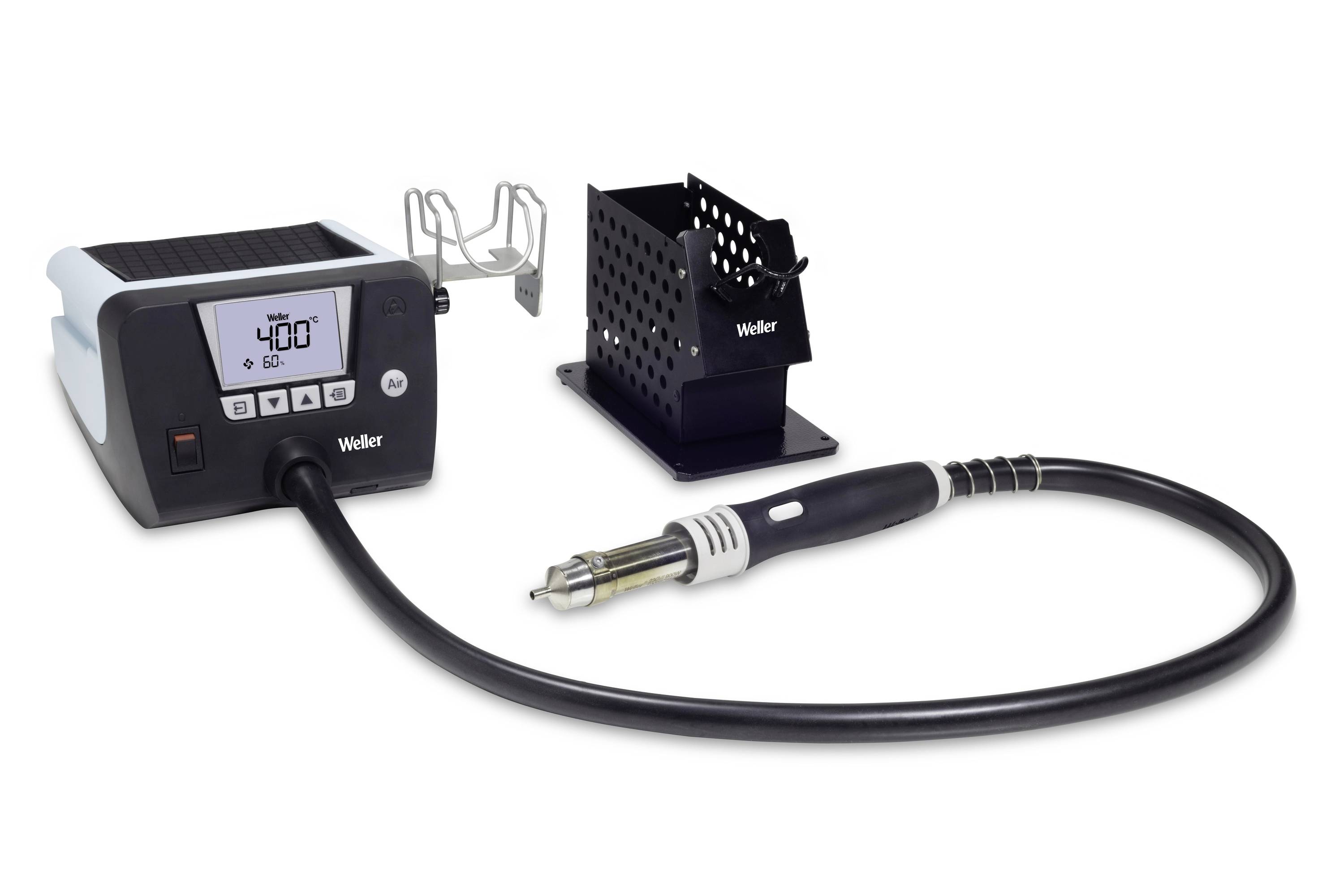

Hot air station, 900 W, 230 V.
This text is machine translated.
This text is machine translated.
Features
- 900 W hot air soldering station for easy repair and hot air work
- Multifunctional LCD display
- Unique LC-display with detailed overview of all
- Functions: Adjustable background lighting.
- Power bar diagram for visual monitoring of the
- The output power from the station to the hot air piston.
- New Menu key
- Enables easy access and navigation through the menu structure.
- Stackable units
- The WT soldering stations can be stacked on the hot-air station WTHA 1 and save space on the workbench.
- 5 presets
- Temperature profile
- Up to 5 presets are available to define hot air volume, temperature and time settings.
- When profile mode is enabled, presets can be retrieved in a selected order.
- New control system
- Tandem control with dual-sensor technology for dual power.
- High performance
- 900 watts, with hot air expanding up to 100 L/min.
- Unit incl. safety rack and fixed hot-air soldering iron
- 900 W hot air soldering station for easy repair and hot air work
- Modern and intuitive operation concept using clear menu structure
- Small space requirement by stacking
- Electronic temperature control
- Accurate hot air distribution by brushless turbine
- Up to 5 presets that can be automatically processed in a profile
- Housing cover can be used as storage area
- Device incl. safety rack and fixed hot-air soldering iron
- Robust safety rack
- Shutdown time, process window, lock function, offset
