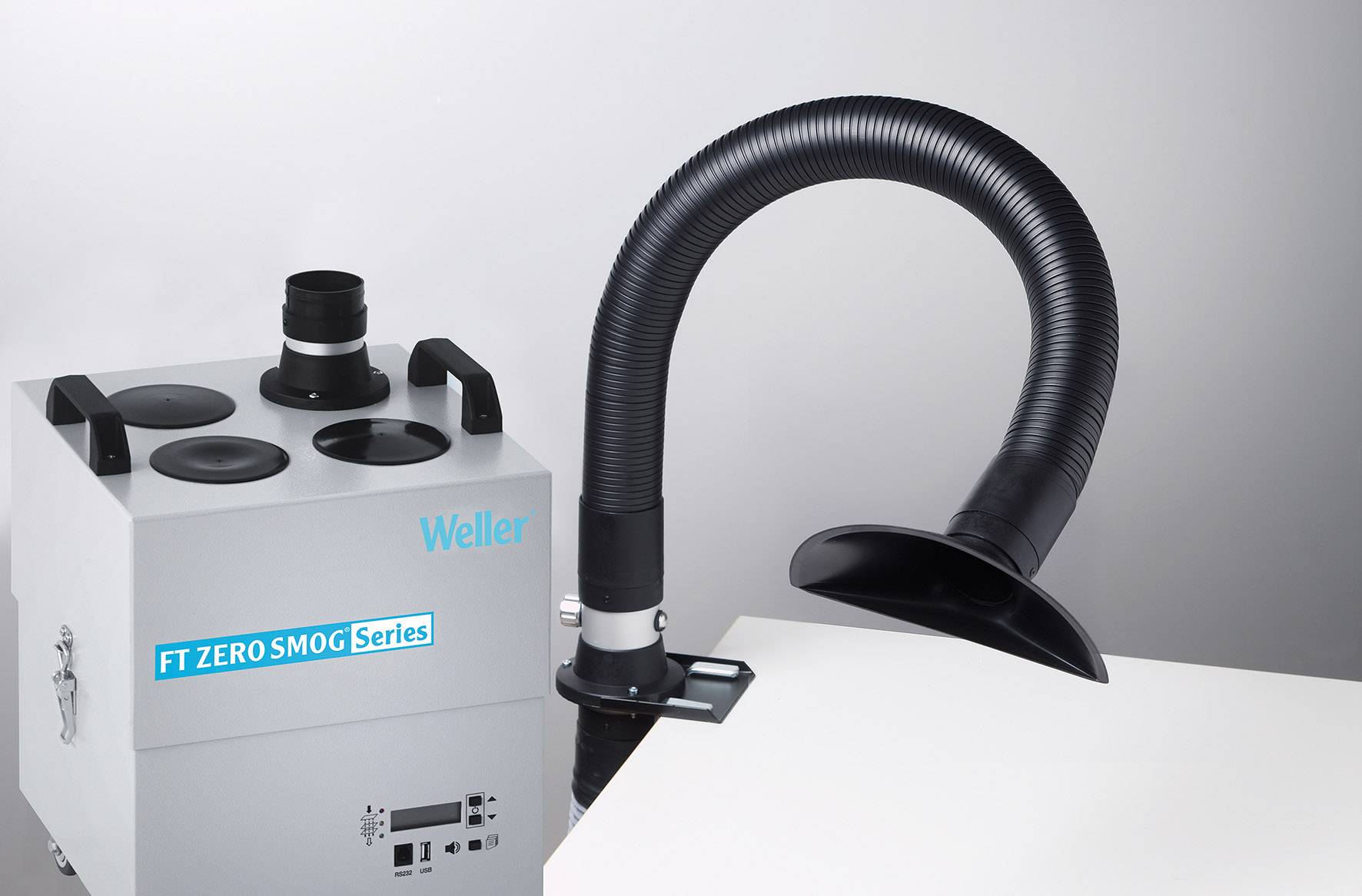

Weller Zero Smog 4V Soldering fume extractor 230 V 275 VA
EAN:
Part number:
Item no:
Number
Total (€ 3,139.00 / piece)
€ 3,139.00
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Weller Zero Smog 4V Soldering fume extractor 230 V 275 VA
- Zero Smog 4V extractor with kit 2 nozzle for use at up to 4 workstations
- The Constant Flow Control (CFC) function guarantees an optimally regulated suction for each individual workstation, regardless of the number of connected workstations
- Electronic filter control with optical and acoustic alarm function
- Efficiency test via USB connection
- 4 rolls for flexible use
- Low noise level
- Remote control via RS 232 connection
- 4 different sets available
Technical specifications
- Max. Capacity: 1-4 jobs
- Applications: Hand soldering, strong solder smoke development, fine dust, methyl ethyl ketone (MEK), solvents
- Product type
Soldering fume extractor
- Max. power
275 VA
- Operating voltage
230 V
- Max. noise generation
48 dBa
- Dim
(L x W x H) 345 x 325 x 505 mm
- Type
Zero Smog 4V extractor with kit 2 nozzle
- Weight
19 kg
- Features
Desk holder
Antistatic
- Width
325 mm
- Height
505 mm
- Length
345 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2177667 Weller Zero Smog 4V Soldering fume extractor 230 V 275 VA
Description
The ZS 4V Kit 2 nozzle suction device is easy to install and operate. Specially developed as a compact, central system, the kit is supplied complete with two flexible hoses, hose suction nozzles, suction arms, beveled nozzles, valves and brackets and is ready for immediate use at the workplace. A powerful, maintenance-free turbine guarantees continuous smoke extraction with a maximum flow of up to 230 m3/h. The CFC function automatically controls the turbine speed and optimizes the required suction power and reduces energy consumption.
This text is machine translated.
This text is machine translated.
Scope of delivery

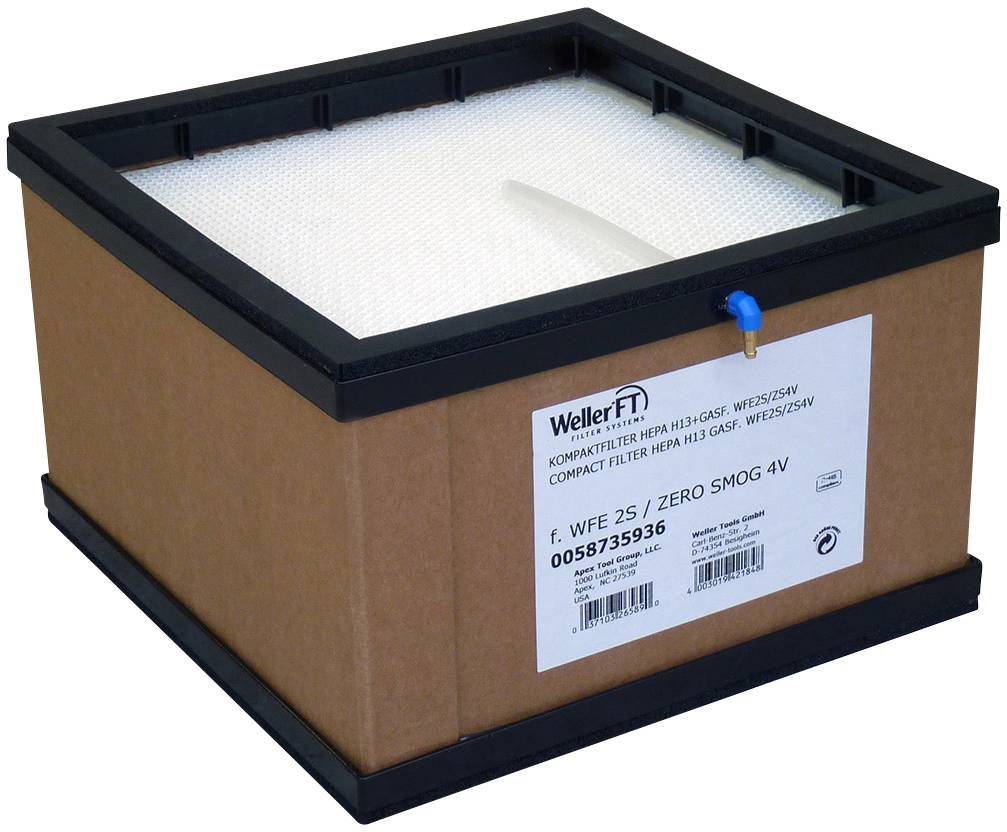

- Fine dust filter F7 (T0058735938), compact filter (T0058735936N), Easy-Click 60 hose connection straight (T0058762767N), Kit 1 WF beveled nozzle (T0053657299N)
